Description
quick stats
- Designed for Roof and external mounting
- Cell lamination Tempered glass
- Ultra-slim design 17mm thin
- Warranty 1 year

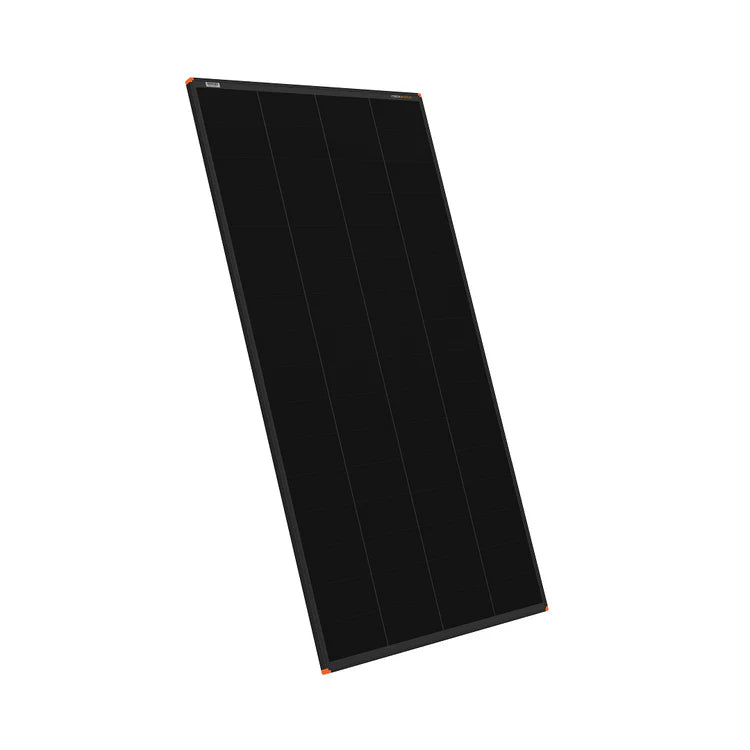

Our 22V 250W Hard Frame Solar Panels are proudly designed and developed in Australia. Utilising advanced HPX PRO Technology, these panels deliver exceptional power output and durability to meet even the most demanding energy needs. Engineered with precision, these panels set a new standard in reliable energy performance and build quality.
Designed locally to uphold the highest standards and tailored specifically for Australian conditions, these panels incorporate cutting-edge technology that maximises power efficiency and minimises energy loss, even under shade and less-than-ideal weather conditions.
Constructed with reinforced materials, they provide enhanced durability and a sleek, modern aesthetic that integrates seamlessly with caravans, 4WD vehicles, and other outdoor applications.
Whether you’re exploring off the beaten track or need dependable power for your system, the 22V 250W Hard Frame Solar Panels are your trusted energy partner, delivering consistent, high-performance output wherever you venture.
| General | |
|---|---|
| Rated maximum power (Pm): | 250W |
| Power tolerance: | ±3% |
| Voltage at Pmax (Vmp): | 19.40V |
| Current at Pmax (Imp): | 12.89A |
| Open-circuit voltage (Voc): | 22.97V |
| Short circuit current: | 13.65A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 20A |
| Operating temperature: | -40°C ~ 85°C |
| Dimensions (LxWxH): | 1600 x 17 x 770mm |
| Weight: | 10kg |
