Description

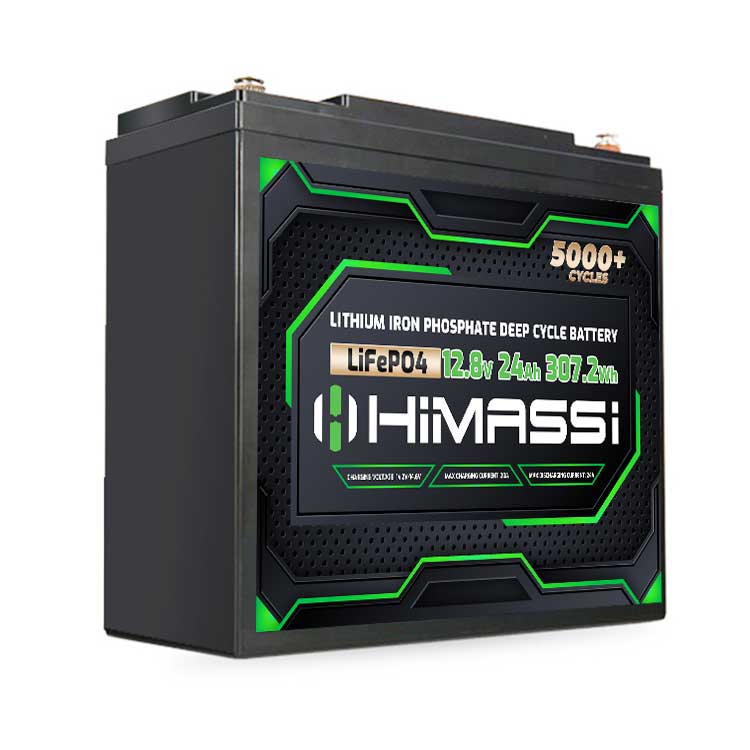

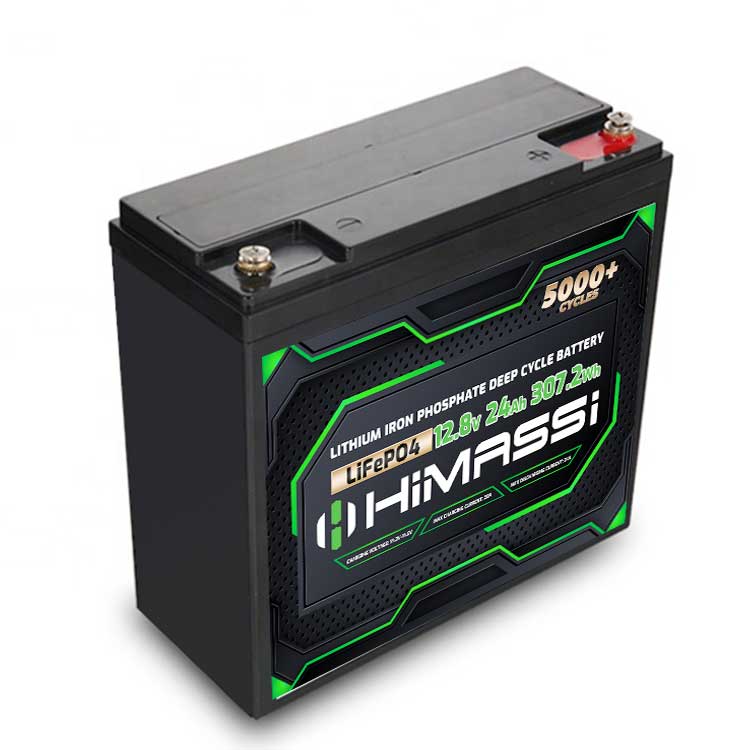

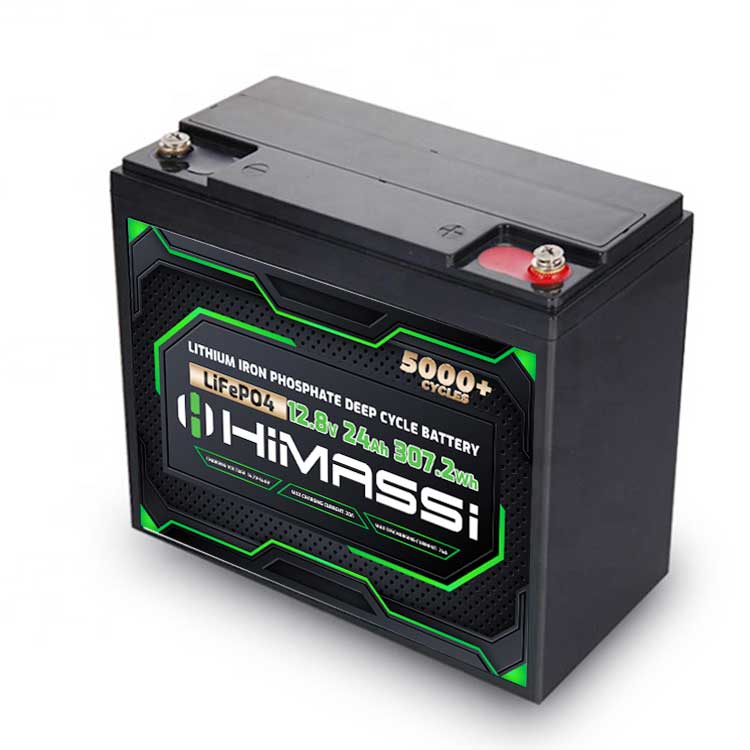

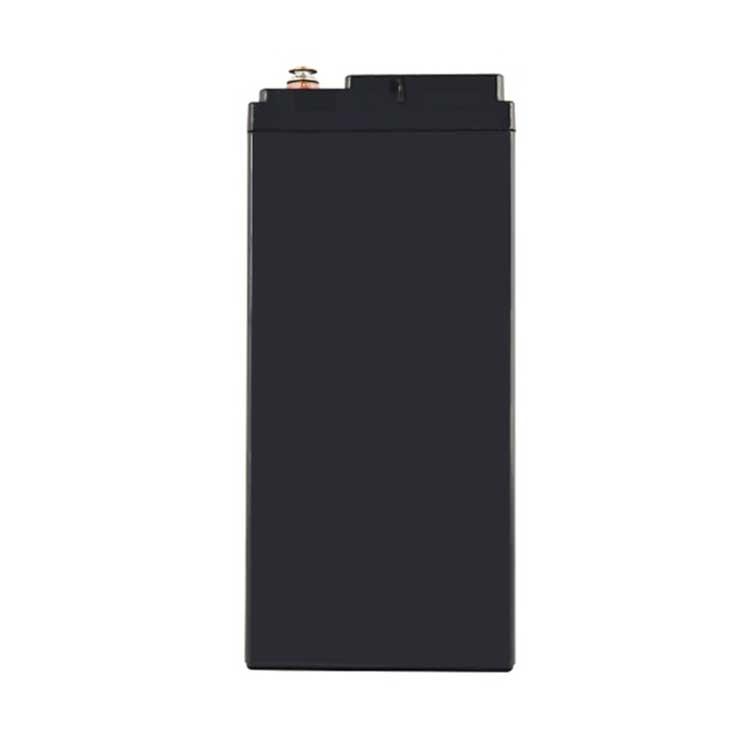

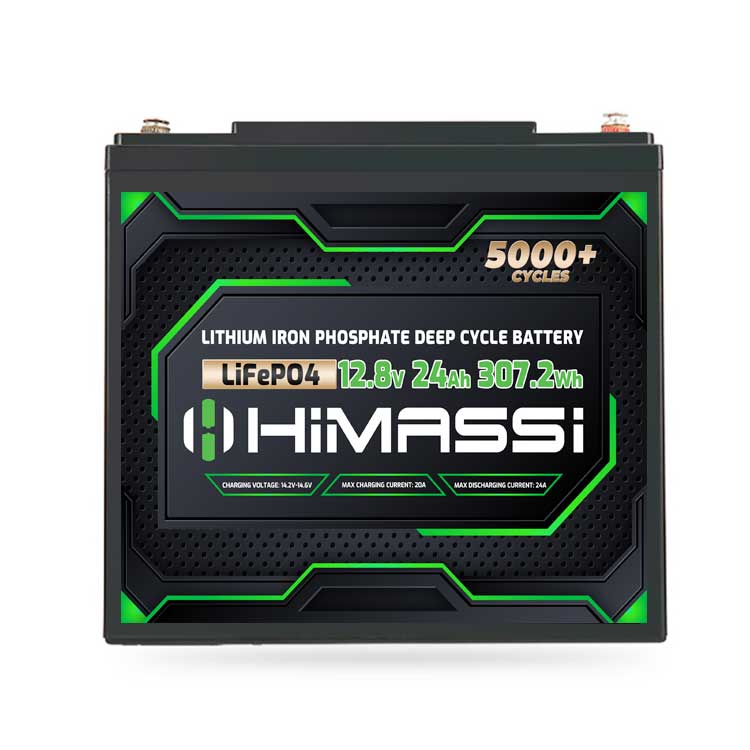

Photos show 24Ah variant as example of the 20Ah for this listing, same dimensions.
| Part Number | Custom Lithium Battery Pack Rechargeable 12V 20Ah |
| MAIN PARAMETER | |
| Rated Capacity | 20Ah |
| Nominal Voltage | 12.8V |
| Max Charge Voltage | 14.6V |
| Discharge Cut Off Voltage | 10V |
| Charging Current | 4.8A |
| Max. Continuous Discharging Current | 6A |
| Cycle Life | ≥2000 cycles |
| Discharge Rate | ≤3% |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (T*W*H) | 181*77*167mm |
| Weight | 2.7Kg |
| Encapsulation | Customized is available |
| OTHERS | |
| Operating Temperature | Charging: 0~45℃/Discharging:-20 ~60℃ |
| Storage Temperature | -20 ~ 60℃ |
| Humidity | 5% to 95% relative humidity |
| Certification | CE/RoHS/MSDS/UN38.3 |
| Main protection function | Overcharge, over discharge, over current, short circuit, etc. |
| Delivery period | 7-20 days, depending on stock and quantity. |
| Warranty | One year |
