100Ah

quick stats

• Maximum Discharge Rate (5 seconds): 250 amps
• Prismatic Cell Technology: 10,000+ cycles @ 40% DoD
• Warranty: 5 year Australian Warranty
• Super slim: Only 55mm wide
• Lightweight at 14.3kg: Equivalent AGM weighs approx. 80kg

The new and improved iTECH100SS 100Ah Super Slim Lithium Battery with Bluetooth is small but packs a punch! Measuring at only 55mm wide and weighing in at 14.3kg, the iTECH100SS has been designed to be the ultimate Super Slim battery those with small spaces but wanting maximum power in their Utes, 4WD's and Canopies. Designed and developed in Australia, the iTECH100SS Slimline Battery is suited to thrive in our harsh Australian conditions, with 100% useable capacity, Bluetooth monitoring, suitable for high heat conditions, certified to IEC 62619 and backed by a 5-year Aussie warranty.

With a 100% useable capacity, you are able to draw the full 100Ah from the battery. The iTECH100SS features the latest in prismatic cell technology allowing for its small form factor and lightweight nature. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.

Never guess your batteries health again. The iTECH100SS Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.

For almost 20 years iTechworld has been at the forefront of Australian lithium battery design and development. Our relentless pursuit of improvement and rigorous testing insures all our batteries surpass the highest standards. Certified to the Australian standard IEC:62619, iTechworld lithium batteries are amongst the safest and most reliable options in the Australian market.

Designed to be a true drop-in replacement for existing systems, the iTECH100SS is the ideal choice for those wanting to upgrade their current heavy AGM or lead-acid systems to lightweight lithium technology. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH100SS Lithium Battery. It's really that simple!

Utilising A-grade prismatic lithium LiFePO4 cells, the iTECH100SS offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space. The prismatic cells offer a minimum of 4000 cycles for long-term reliability.

To super-charge the iTECH100SS performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.

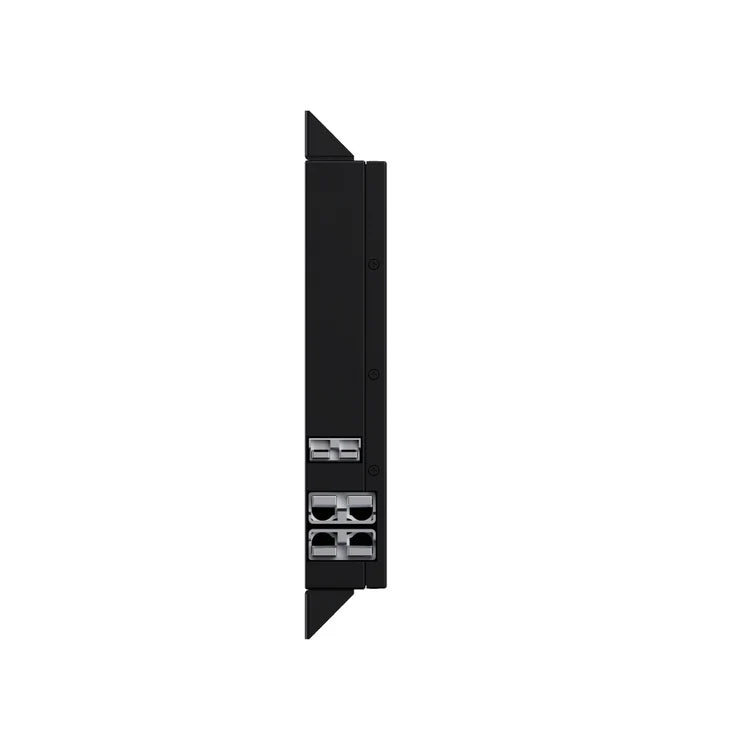

iTech100SS features 2 x 120A and 1 x 50A Anderson plugs for flexible input/output options.



PACKAGE CONTENTS

• 1 x iTECH100SS 100Ah Lithium 12v Battery
• 1 x User Guide
• 1 x Bluetooth App User Guide HERE

WARRANTY & SUPPORT

As a testament to the toughness and performance of our iTECH100SS lithium batteries, we have backed them up with a full 5-year Australian warranty (3 years full replacement, 2 years pro-rata).

*Storage deep cycle battery only. It cannot be used as a cranking battery.

General
Voltage:	12V
Nominal voltage:	12.8V
C20 rating usable Amps:	100Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-40°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge voltage:	14.4V
Maximum charge current:	100A
BMS charge cutoff:	15V
BMS low voltage cutoff:	8.5-9V
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 80% depth of discharge:	5,000+
Life cycles @ 40% depth of discharge:	10,000+
Continuous Discharge:	100A
Maximum Discharge Rate (5 Seconds):	250A
Dimensions (LxWxH):	487 x 55 x 290mm (358mm H including terminals)
Weight:	14.3kg
Terminal type:	2 x 120A & 50A Anderson
Case material:	Stainless steel
