Description
- Includes a power voltage display
- Supports both parallel and series connection
- Non-toxic, incombustible composition
- Specially designed BMS
- Built-in protective features
- Approved in accordance with IEC 62619

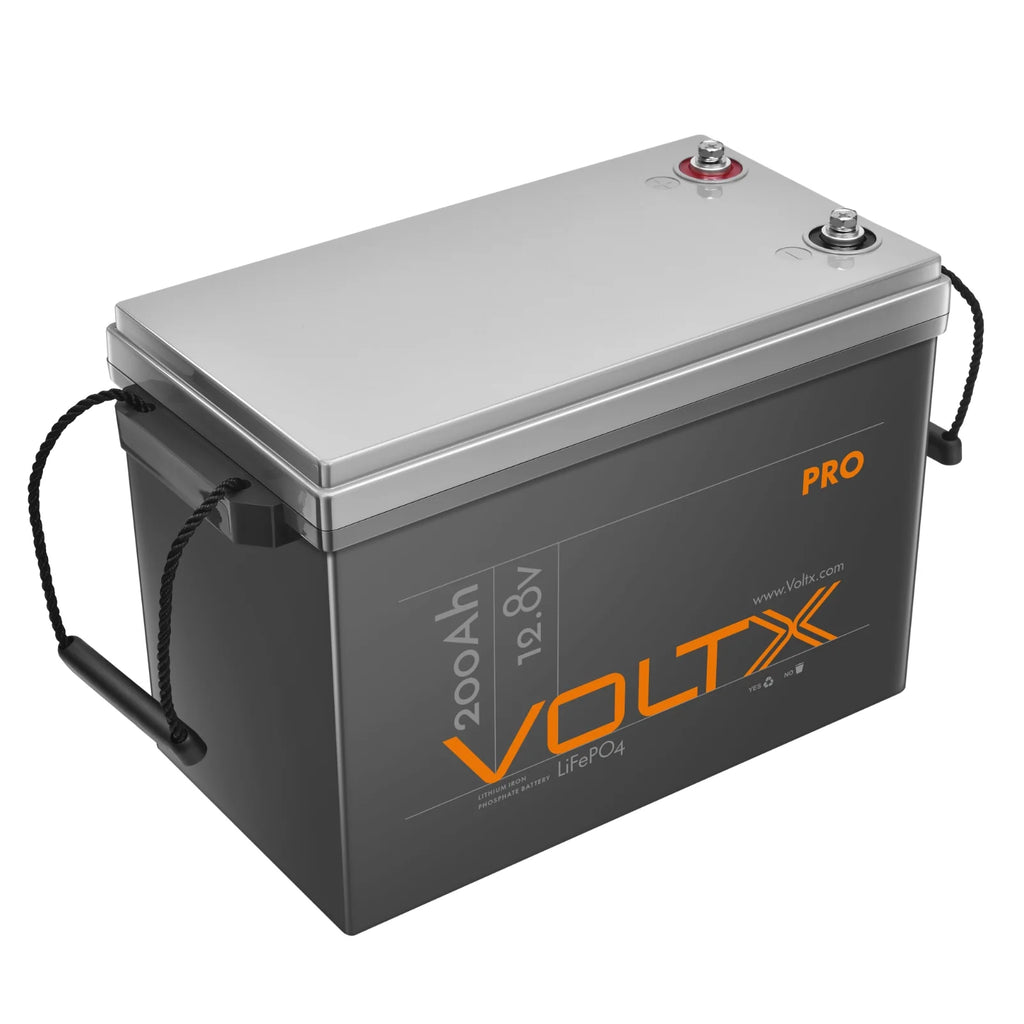

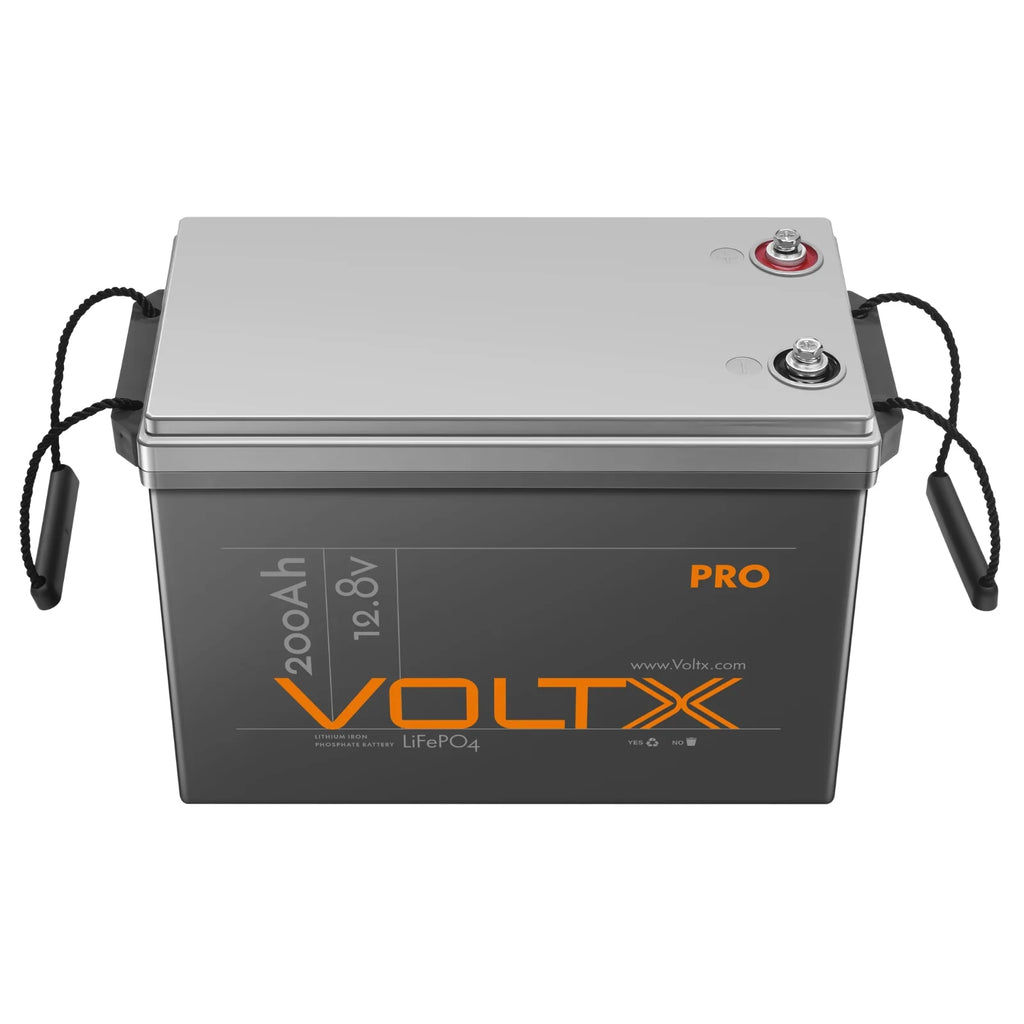

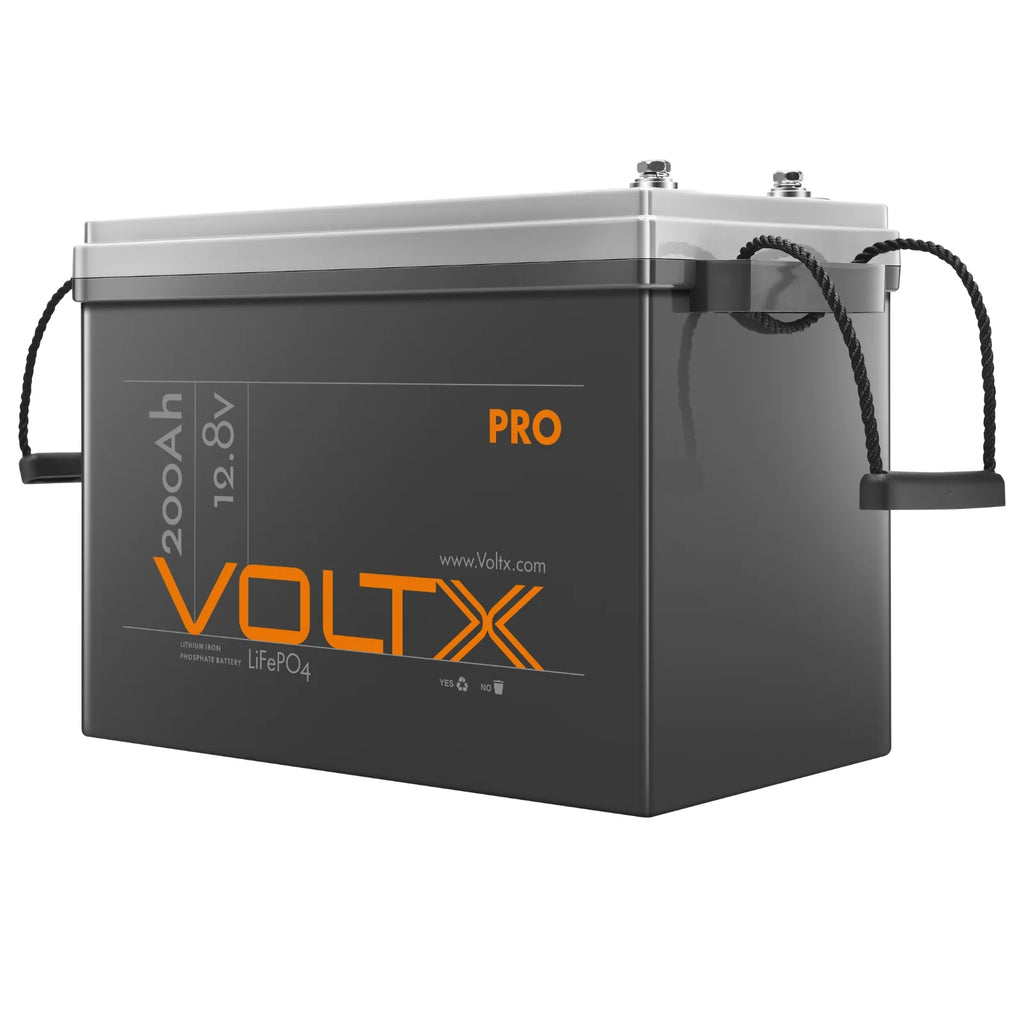

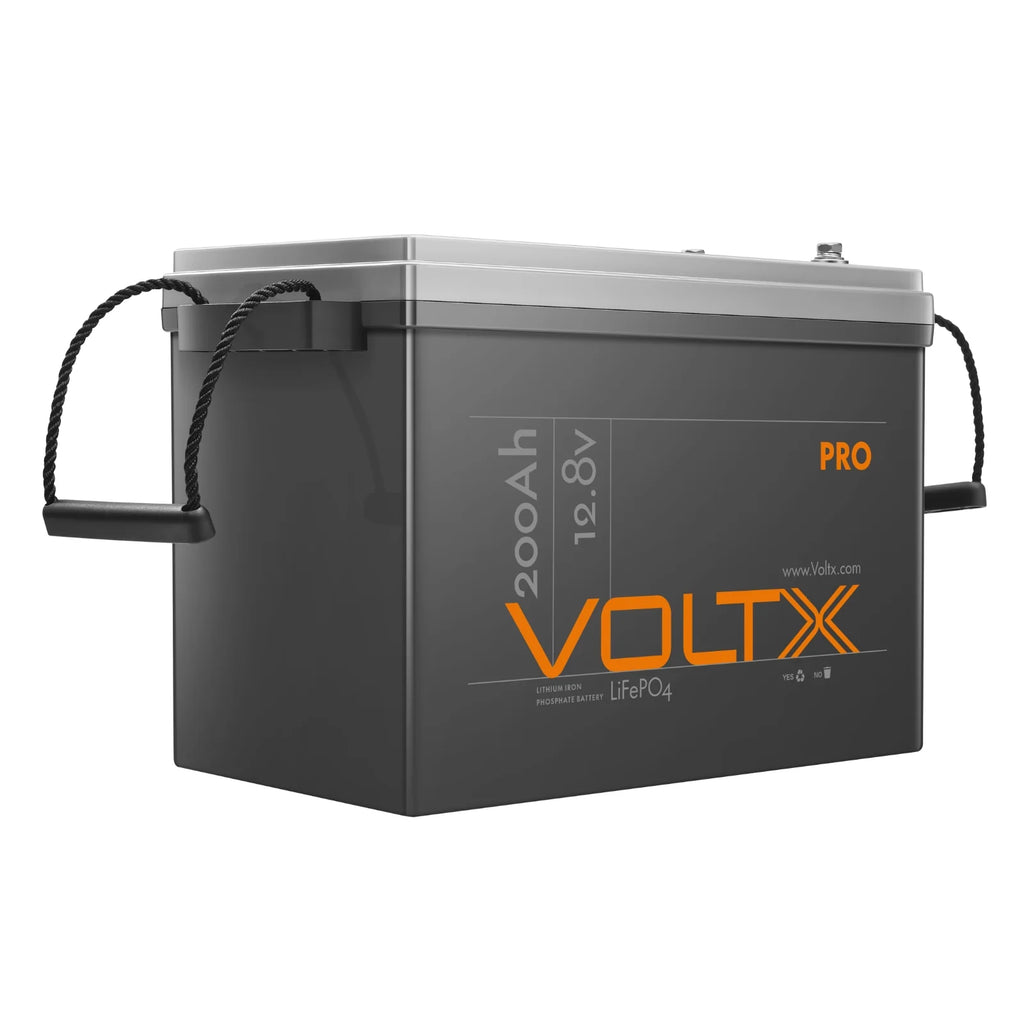

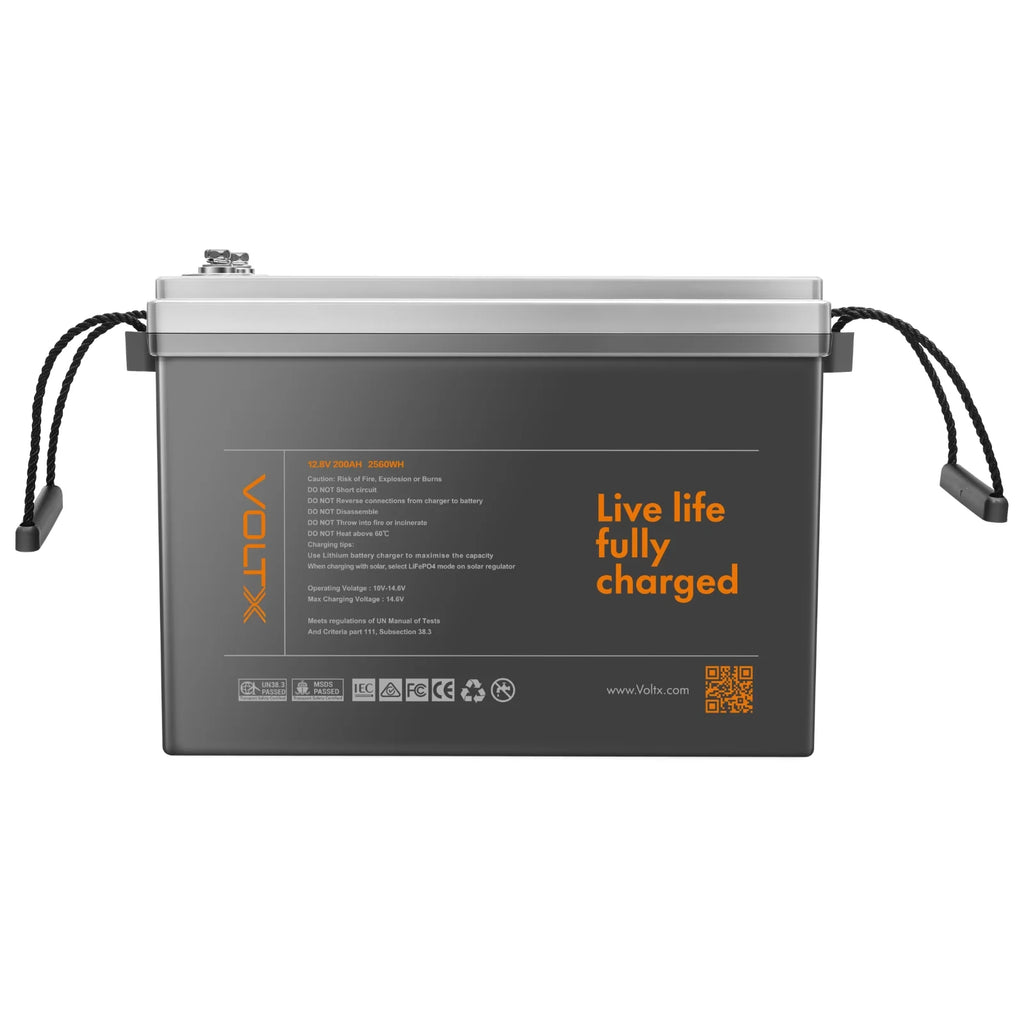

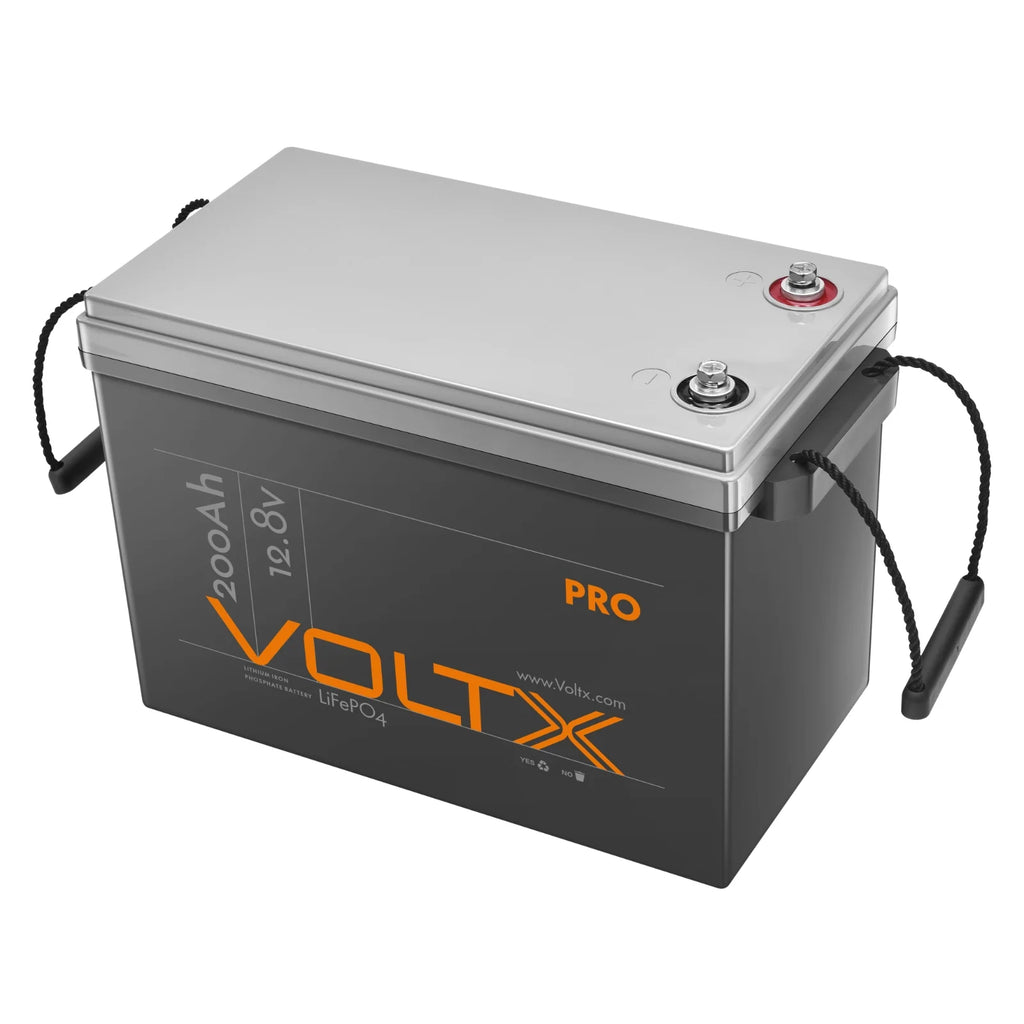

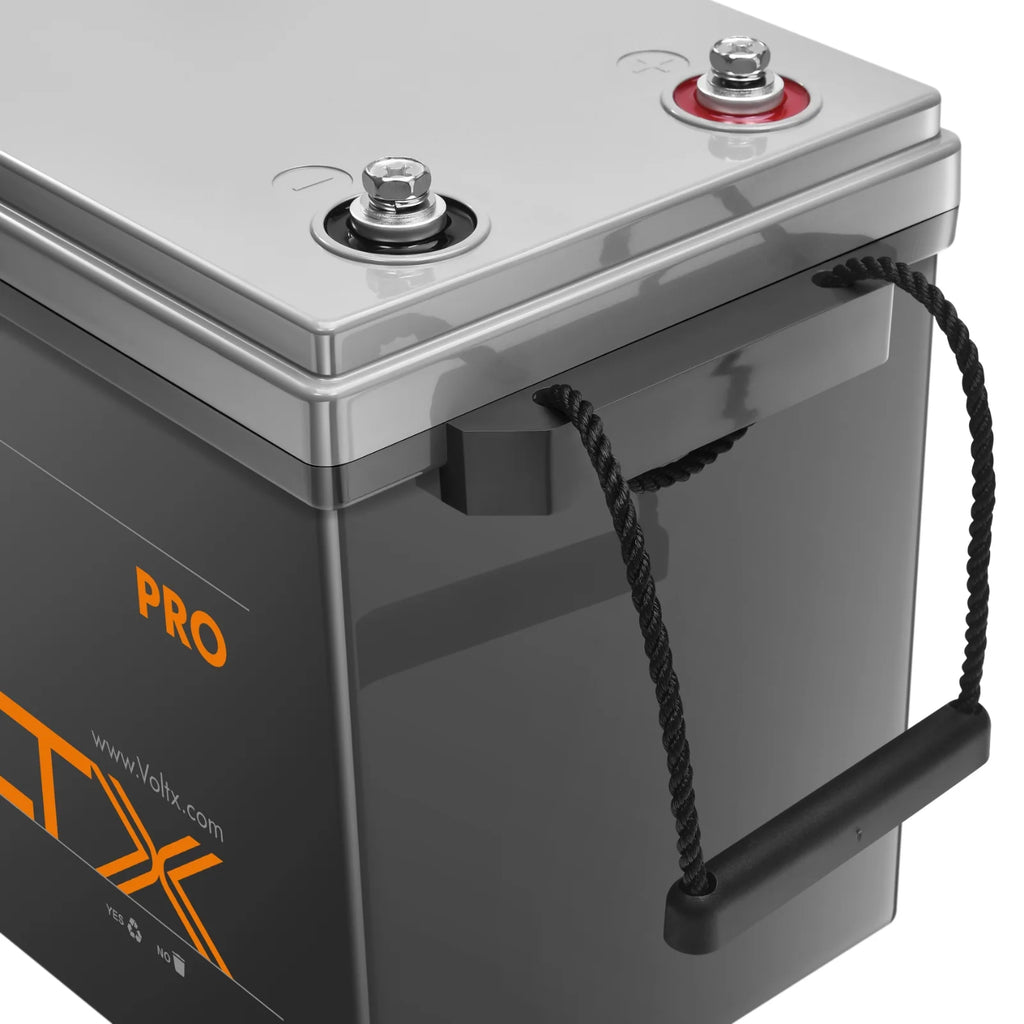

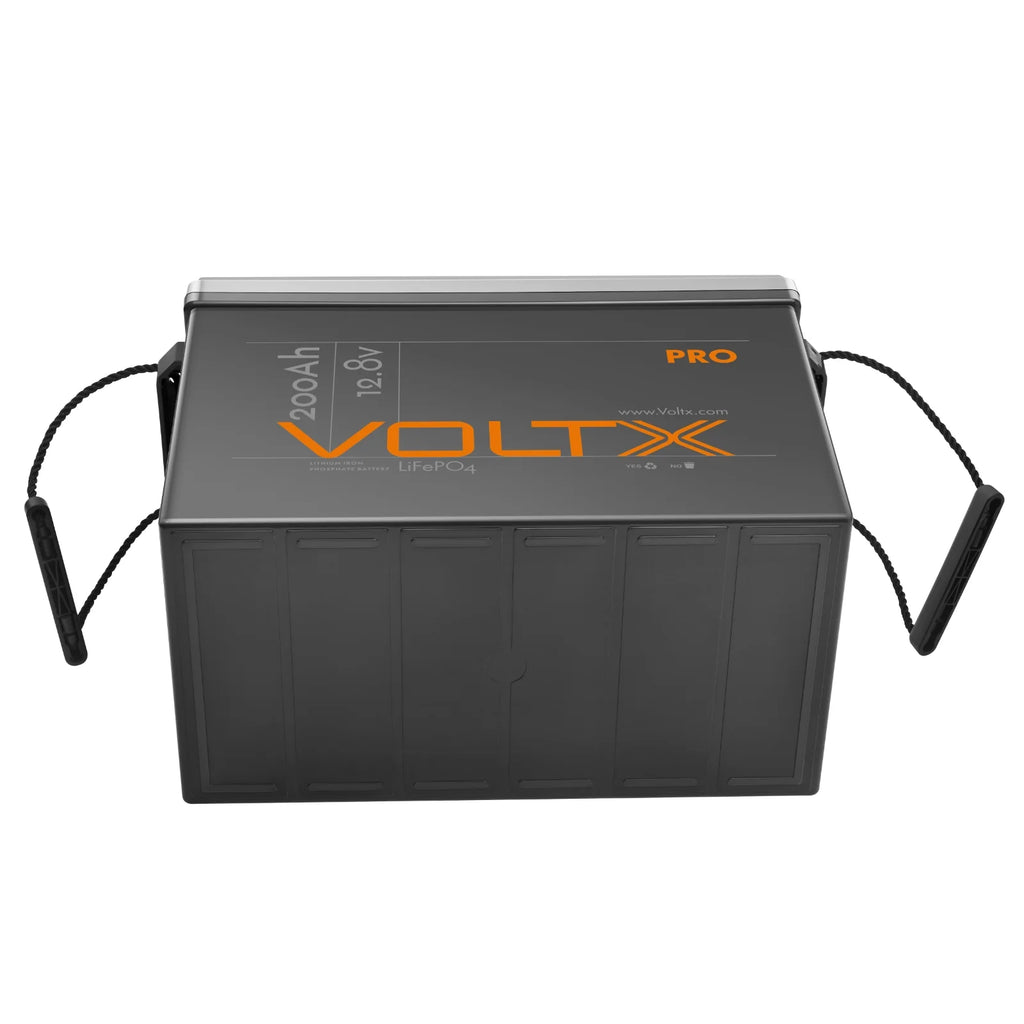

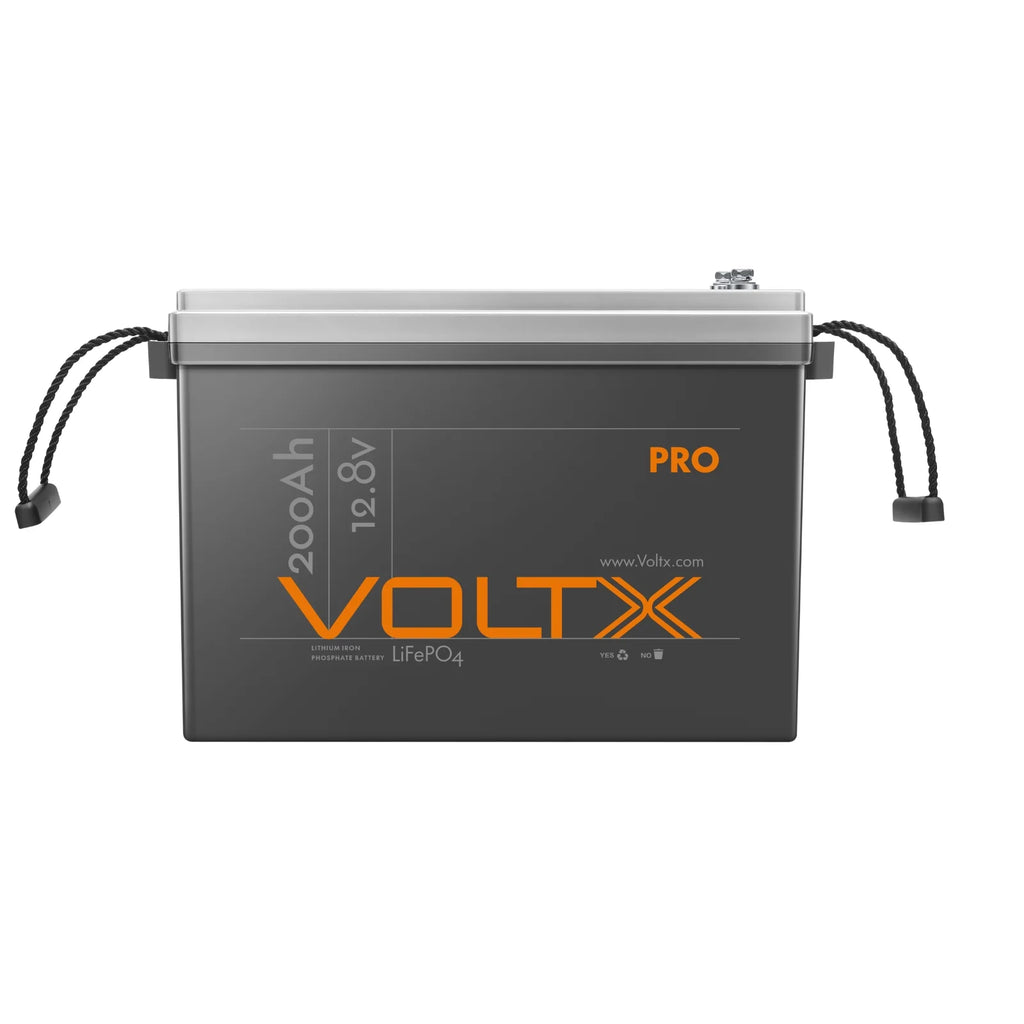

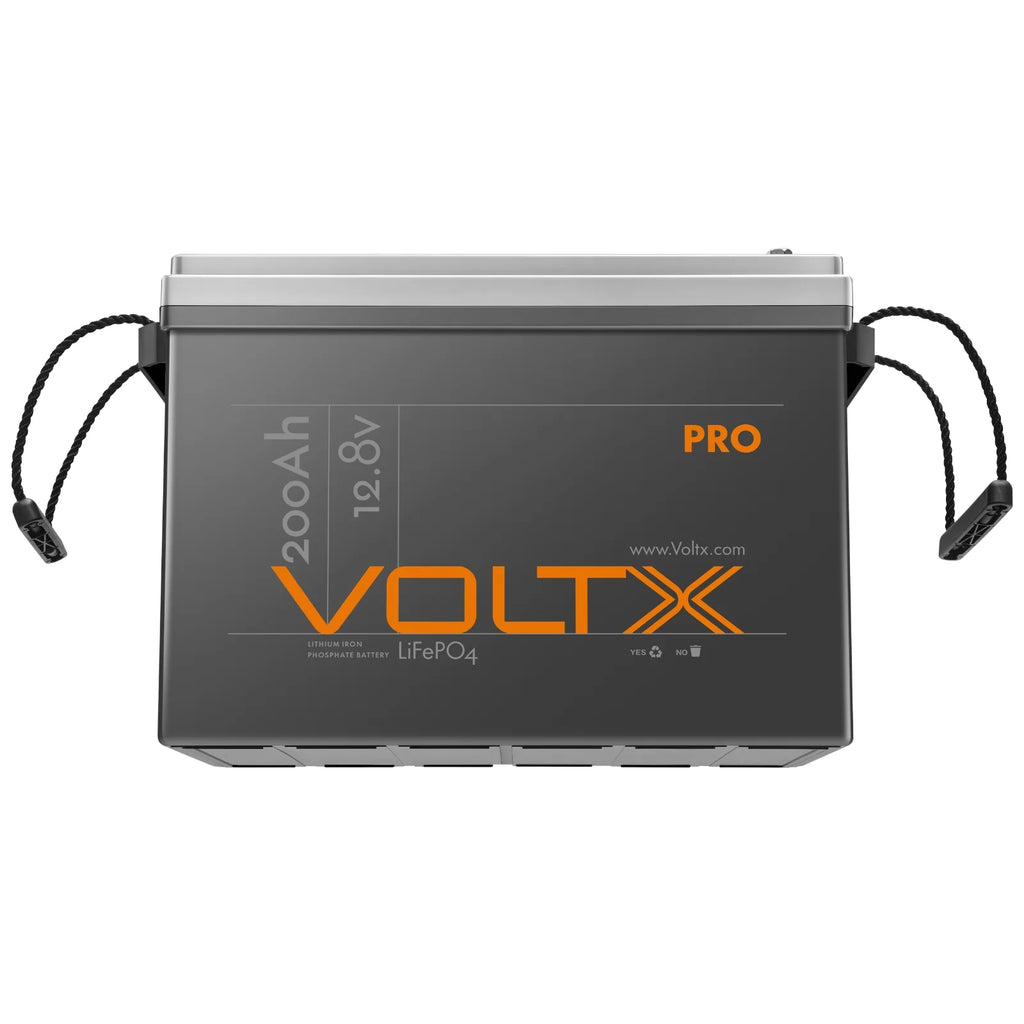

Get a reliable LiFePO4 battery and so much more with the VoltX 12V 200Ah Pro Lithium Battery. This premium quality power pack houses an advanced battery management system that automatically optimizes cells and protects against overload, overcharge, and short circuits. VoltX has made bold upgrades to their premium PLUS battery range as well, as this 200Ah battery now supports both parallel and series connections to accommodate large-scale power demands such as home or commercial backup applications.
SPECIFICATIONS
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 200Ah |
| Charging Voltage: | 14.2-14.6v |
| Rated Energy: | 2560Wh |
| Rated Discharge Current: | 100A |
| Max. Discharge Current: | 200A |
| Max. Discharge Current 5 sec: | 300A |
| Approx Life Cycles: | 4000 |
| Absorption Voltage: | 14.4V |
| Float Voltage: | 13.8V |
| Overcharge Protection: | 14.4V |
| Overcharge Recovery: | 14V |
| Overdischarge Protection: | 10.8V |
| Overdischarge Recovery: | 11.2V |
| Cell Grouping: | 4S2P |
| Working Temperature Range: | Charge: 0°C to 45°C Discharge: -25°C to 65°C |
| Storage Temperature: | -10℃ to 50℃ |
| Battery Cells: | Prismatic |
| Case Material: | ABS Plastic |
| Parallel Connection: | Yes, max 6 batteries |
| Series Connection: | Yes, max 6 batteries |
| Warranty in Years: | 5 |
DIMENSIONS & WEIGHT
| Dimensions: | 345(L) x 190(W) x 245(H)mm Side handles approx. 20-30mm each side |
| Weight: | 19kgs |
WHAT'S IN THE BOX
| 1 x | Lithium Battery |
