Description
Stock only for Sigenergy Sigenstore Gateway.

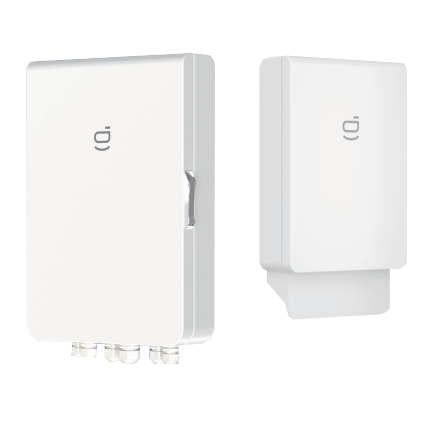

Sigen Gateway HomePro SP (Single Phase)
| Category | Specification |
|---|---|
| Grid Connection | |
| Grid Type | Single Phase |
| Nominal AC Voltage | 220 / 230 / 240 V |
| Nominal AC Current | 54.6 A |
| Nominal AC Power | 12 kW |
| Nominal AC Frequency | 50 / 60 Hz |
| Backup Switch Disruption Time | 0 ms (Seamless switchover) |
| AC Output to Backup Port | |
| Nominal AC Voltage | 220 / 230 / 240 V |
| Nominal AC Current | 54.6 A |
| Nominal AC Power | 12 kW |
| Nominal AC Frequency | 50 / 60 Hz |
| Overvoltage Category | III |
| Inverter Connection | |
| Nominal AC Voltage | 220 / 230 / 240 V |
| Nominal AC Current | 54.6 A / 32 A |
| Nominal AC Power | 12 kW / 6 kW |
| Smart Port Connection | |
| Generator Output Voltage | 220 / 230 / 240 V |
| Nominal Current | 54.6 A |
| Nominal AC Power | 12 kW |
| Generator 2-Wire Start | Supported |
| General Data | |
| Dimensions (W × H × D) | 450 × 570 × 197 mm (without decorative cover) |
| Weight | 25 kg (without decorative cover) |
| Operating Temperature | –30 °C to 55 °C |
| Storage Temperature | –40 °C to 70 °C |
| Relative Humidity | 0% – 100% |
| Max. Operating Altitude | 4000 m |
| Cooling | Natural Convection |
| Protection Rating | IP55 |
| Communication | Fast Ethernet, RS485, Dry Contact |
| Installation | Wall-Mounted (Supports Rear Wiring) |
| Key Features | |
| – 0 ms seamless load-side switchover | |
| – Built-in bypass circuit | |
| – Supports diesel generator integration | |
| – Real-time current monitoring (100 ms zero export) | |
| – Whole-house & smart prioritized backup |
Sigen Gateway HomePro TP (Three Phase)
| Category | Specification |
|---|---|
| Grid Connection | |
| Grid Type | Three Phase |
| Nominal AC Voltage | 380 / 400 V |
| Nominal AC Current | 45.6 A |
| Nominal AC Power | 30 kW |
| Nominal AC Frequency | 50 / 60 Hz |
| Backup Switch Disruption Time | 0 ms (Seamless switchover) |
| AC Output to Backup Port | |
| Nominal AC Voltage | 380 / 400 V |
| Nominal AC Current | 45.6 A |
| Nominal AC Power | 30 kW |
| Nominal AC Frequency | 50 / 60 Hz |
| Overvoltage Category | III |
| Inverter Connection | |
| Nominal AC Voltage | 380 / 400 V |
| Nominal AC Current | 45.6 A |
| Nominal AC Power | 30 kW |
| Smart Port Connection | |
| Generator Output Voltage | 380 / 400 V |
| Nominal Current | 45.6 A |
| Nominal AC Power | 30 kW |
| Generator 2-Wire Start | Supported |
| General Data | |
| Dimensions (W × H × D) | 450 × 695 × 163 mm (without decorative cover) |
| Weight | 25 kg (without decorative cover) |
| Operating Temperature | –30 °C to 55 °C |
| Storage Temperature | –40 °C to 70 °C |
| Relative Humidity | 0% – 100% |
| Max. Operating Altitude | 4000 m |
| Cooling | Natural Convection |
| Protection Rating | IP55 |
| Communication | Fast Ethernet, RS485, Dry Contact |
| Installation | Wall-Mounted |
| Key Features | |
| – 0 ms seamless backup switching | |
| – Multi-source switching: PV / ESS / Grid / Generator / V2X | |
| – Built-in bypass for enhanced reliability | |
| – Supports diesel generator connection | |
| – Smart load prioritization & whole-house backup |
