Description
Note: All solar panels in a system must have a matching OCV. Do not connect panels of different voltages in series or parallel.
quick stats
- Designed for : Roof and external mounting
- Cell lamination : Tempered glass
- Ultra-slim design : 17mm thin
- Warranty : 1 year

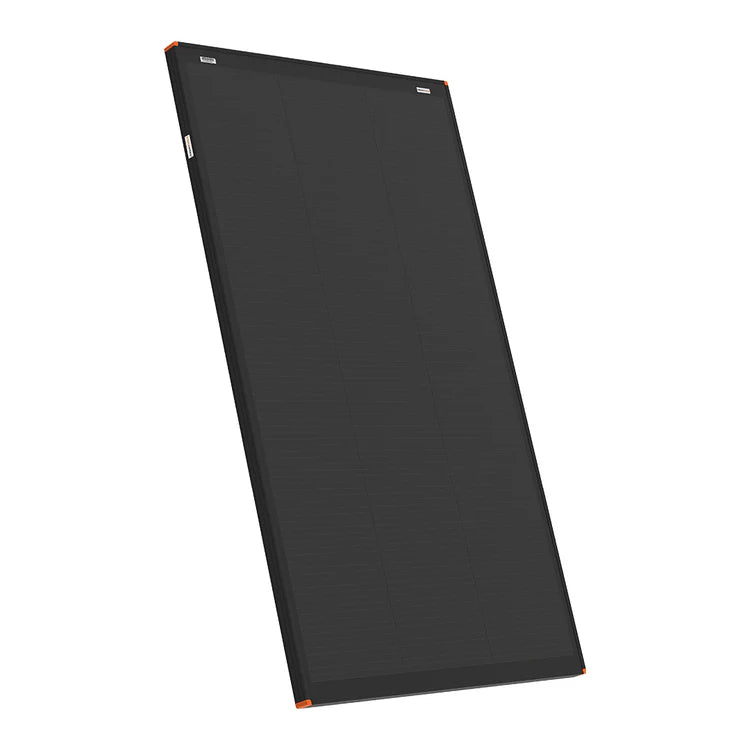

Our 27V 150W Hard Frame Solar Panels have proudly been designed and developed in Australia. Utilising HPX PRO technology, you can expect higher power per square meter, less energy loss due to shading and overall improved aesthetics.
Introducing our all-new 27V 150W Hard Frame Solar Panels, a product of Australian ingenuity and design. Crafted with precision and dedication, these solar panels are not just an energy solution but a testament to superior quality and innovation.
Proudly conceptualised and developed right here in Australia, ensuring top-notch quality and understanding of local needs.
The use of HPX PRO technology means you get more power per square metre. This advanced technology ensures minimal energy loss due to shading, maximising the efficiency of your panel.
Beyond its functionality, the solar panel boasts an improved aesthetic design, seamlessly attaching to your caravan or 4WD.

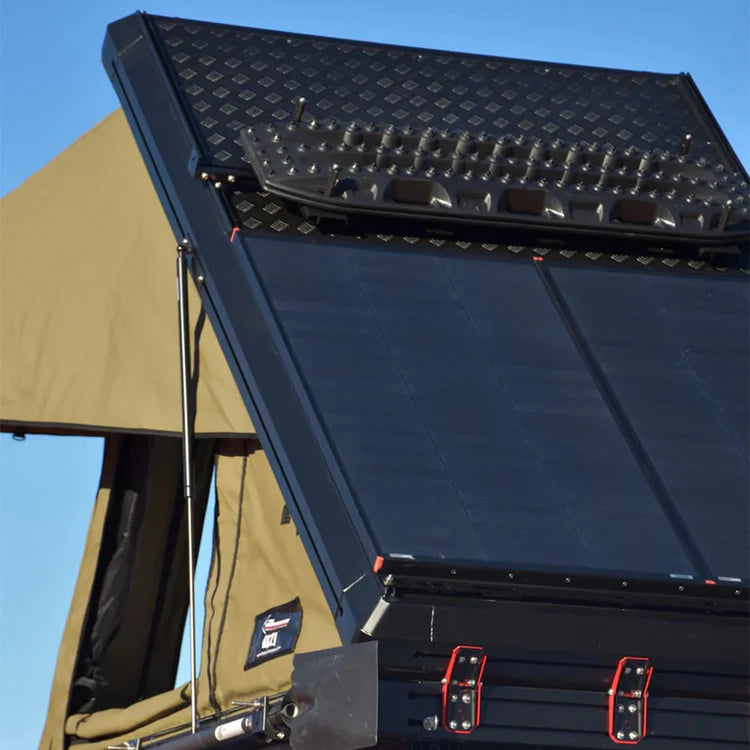

Whether you're hitting the road in your caravan or exploring off-beaten tracks in your 4WD, this solar panel is your reliable energy companion. Its design ensures optimal energy absorption, keeping your vehicles powered up during your adventures.
To help secure your solar panels, we offer easy-to-use mounting brackets, sold separately. These brackets are designed for hassle-free installation, ensuring your solar panels are securely mounted on your caravan or 4WD.
| 22V 150W Solar Panel | |
|---|---|
| Rated maximum power (Pm): | 150W |
| Power tolerance: | ±3% |
| Voltage at Pmax (Vmp): | 18.3V |
| Current at Pmax (Imp): | 8.2A |
| Open-circuit voltage (Voc): | 22.4V |
| Short circuit current: | 8.7A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 15A |
| Operating temperature: | -40°C ~ 85°C |
| Dimensions (LxWxH): | 1160 x 670 x 17mm |
| Weight: | 9.3kg |
| 27V 150W Solar Panel | |
|---|---|
| Rated maximum power (Pm): | 150W |
| Power tolerance: | ±3% |
| Voltage at Pmax (Vmp): | 22.2V |
| Current at Pmax (Imp): | 6.8A |
| Open-circuit voltage (Voc): | 27.5V |
| Short circuit current: | 7.3A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 15A |
| Operating temperature: | -40°C ~ 85°C |
| Dimensions (LxWxH): | 1160 x 670 x 17mm |
| Weight: | 7.8kg |
