Description
- Charging profiles: For use with all types except calcium
- Prismatic Cell Technology: 10,000+ cycles @ 40% DoD
- Continuous Discharge Rate: 200 amps
- Maximum Discharge Rate (5 seconds): 300 amps

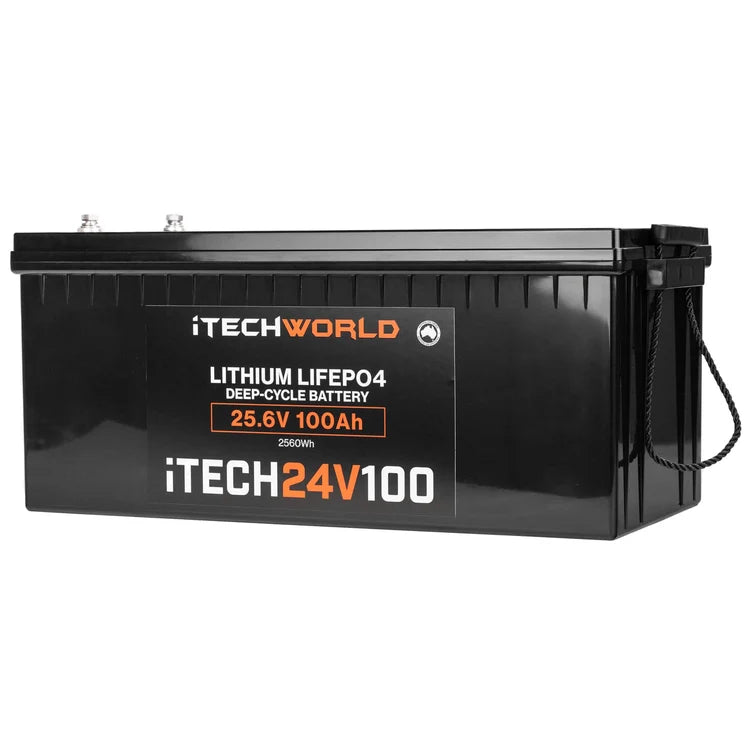

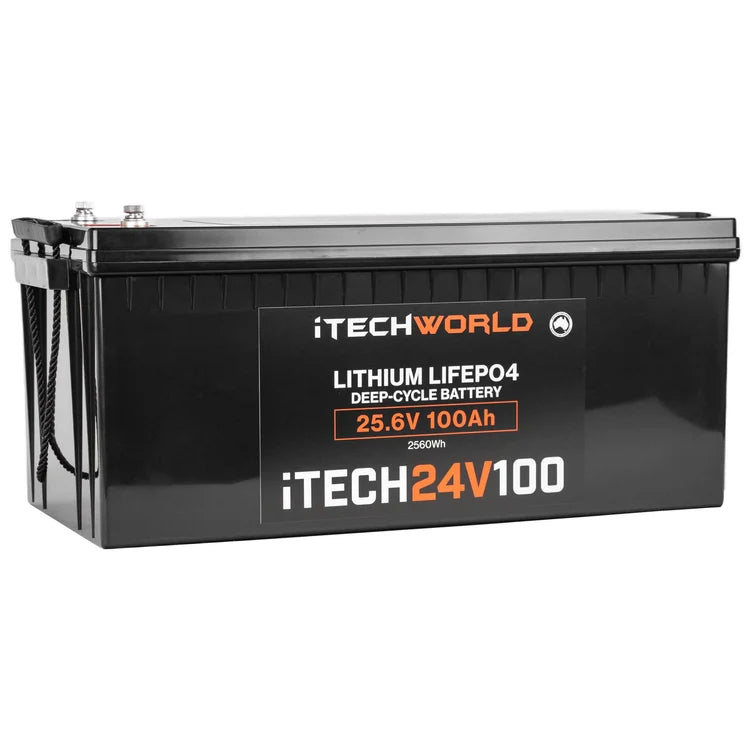

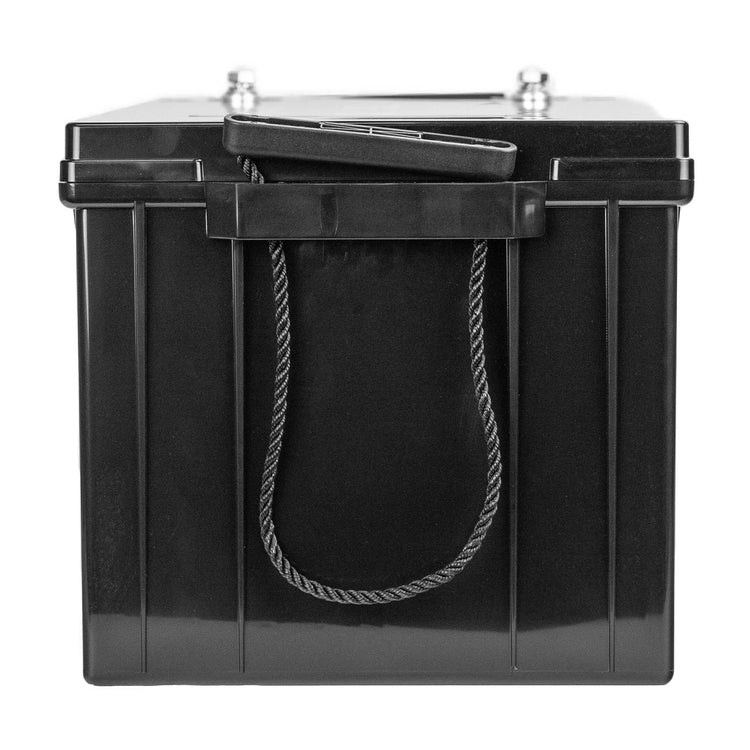

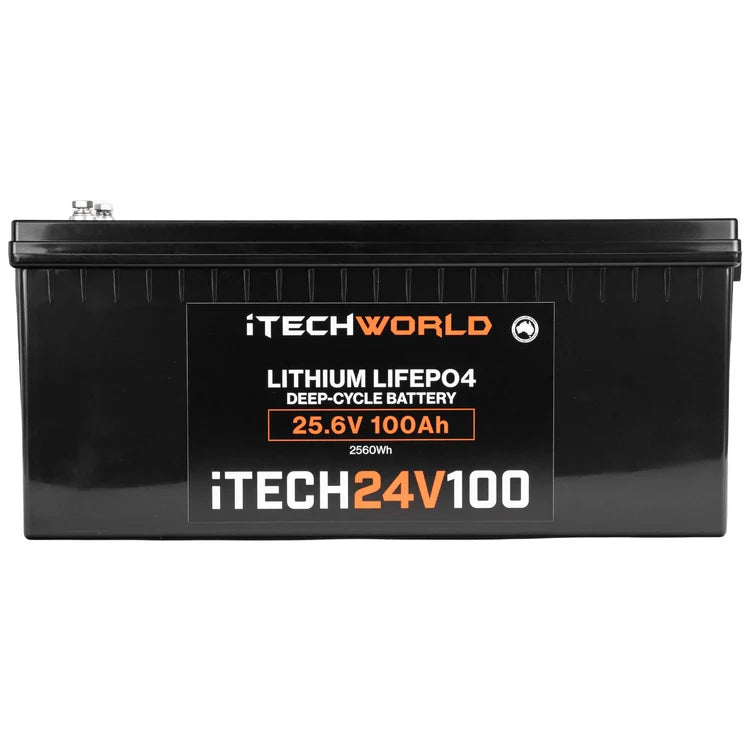

We are introducing our latest lithium deep cycle battery, the iTECH24V100. A massive 100 Amps at 24V of high-performance usable power coupled with the Redback™️ Lithium Operating System which ensures iTechworld's lithium battery range will outperform and outlast all others on the market.
100% of the iTECH24V100's capacity is usable. The internal BMS allows 100A continuous discharge. The iTECH24V100's internal BMS controls cell balancing, over and under-voltage protection, short circuit protection, thermal protection, and over-discharge protection (safe mode).
The iTECH24V100 is equivalent to 200Ah in lead-acid 24V batteries (based on the standard depth of discharge of the iTECH24V100 (100%) and AGM battery (50%).
The iTECH24V100 weighs just 26kg. The equivalent lead-acid battery weighs 120+kg.
The iTECH24V100 deep cycle battery will charge up to 5x faster than a traditional lead-acid battery. The iTECH24V100 can charge from just about all existing chargers with no extensive modifications required to existing systems.
The iTECH24V100 can cycle up to 5000 times at 50% depth of discharge. AGM battery equivalents can cycle up to 500 times at a 50% depth of discharge. iTECH24V100 lithium battery systems have little to no self-discharge rate(≤2%). The battery pack can sit for long periods and will not go flat.
Our lithium batteries are designed and developed in Australia for use with caravans, camper trailers, motor homes, 4WD, boats, yachts, trucks and everything in-between. The iTECH24V100 will operate flawlessly in extreme heat and will handle heavy vibrations usually associated with corrugated roads.
Package Contents
- 1 x Lithium Single Deep Cycle Battery iTECH24V100
- Pre-installed Redback™️ Lithium Operating System
- User Guide
Support
The statutory warranty is 36 months from the date of purchase.
If your Battery Management System (BMS) is activated and the battery shows 0v it has entered into safe mode, to 'wake it up' a compatible lithium battery charger is required such as the iTECHBC20-24.
Storage deep cycle battery only. It is not a cranking battery.
Voltage:24V
Nominal voltage:24.8V
Short circuit protection:Yes
Optimum temperature range:0°C ~ 45°C
BMS operational temperature range:-20°C ~ 60°C
Safety protection isolator:60°C
Recommended charge voltage:28.8V
BMS charge cutoff:30V
BMS low voltage cutoff:20.1V
Series connection:Up to 48V (2 x batteries)
Parallel connection:Up to 4 batteries
Life cycles @ 80% depth of discharge:5,000+
Life cycles @ 40% depth of discharge:10,000+
Continuous Discharge Rate:100A
Maximum Discharge Rate (5 Seconds):380A
Dimensions (LxWxH):525 x 240 x 220mm (235 H including terminals)
Weight:26kg

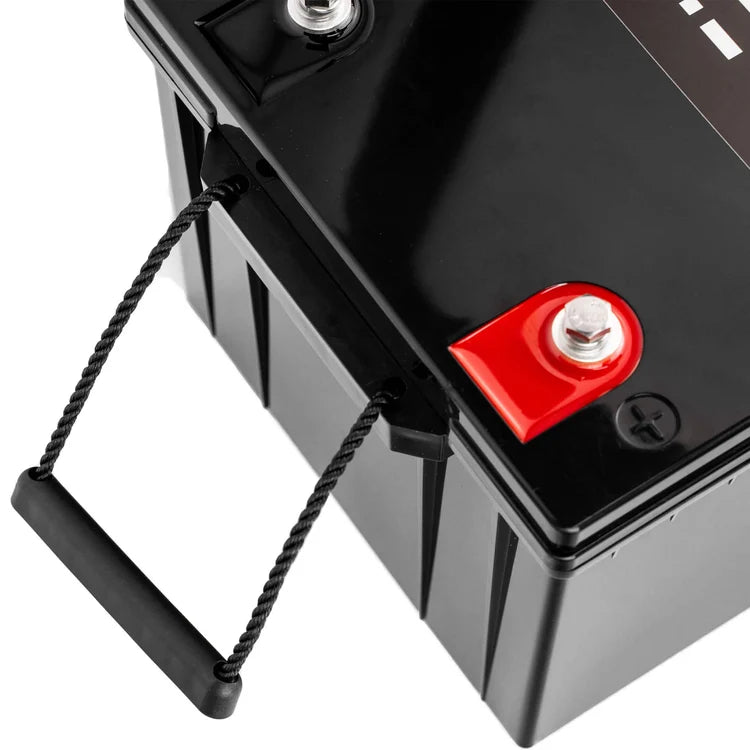

Terminal type:M8
Case material:ABS
