Description
Ideal for busy individuals, GLO offers essential smart technology, tariff integration and functionality without the fuss, enabling effortless operations at the palm of your hand.
The benefits
A Simple Way to Charge Smart.

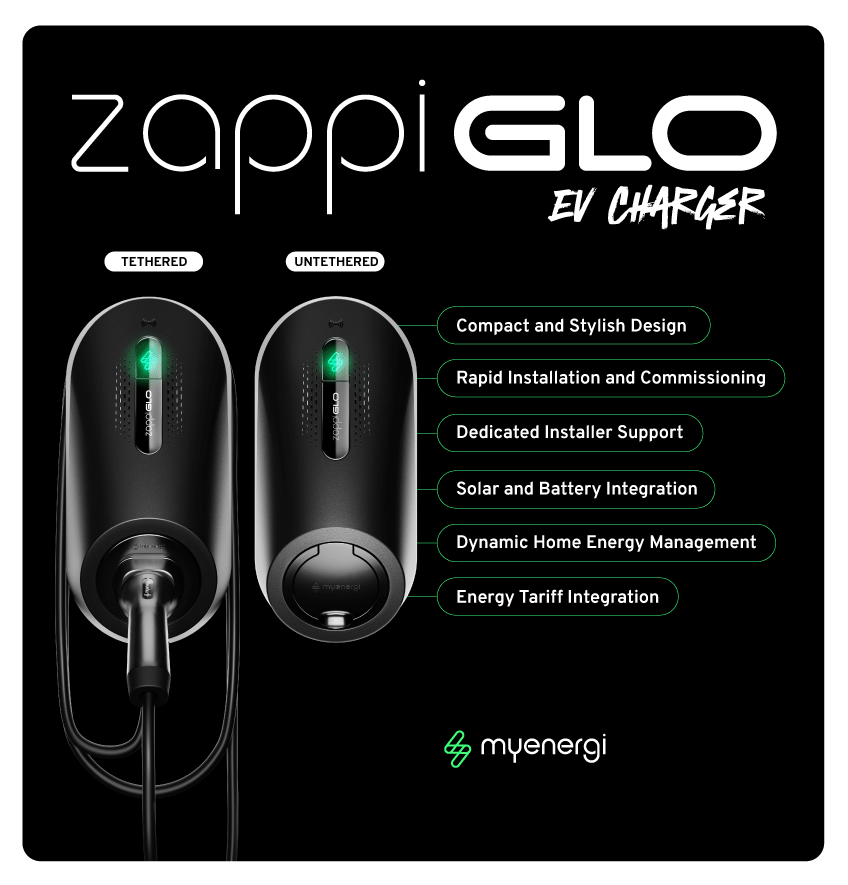

zappi GLO keeps EV charging simple with its minimalist, screen-free design while still delivering powerful smart functionality. Available in tethered or untethered, it lets you charge using solar power, low-cost grid tariffs, or a combination of both.
Compact, stylish, easy to use design
Installation is quick and tidy, with a compact design that fits seamlessly into any residential or semi-commercial setting with shared charging. The tap-to-charge functionality with RFID provides secure and easy access, which can be shared among family members, teams, tenants, or in any shared setting. It supports up to 126 users, each with unique identification for simple usage tracking.
echnical overview

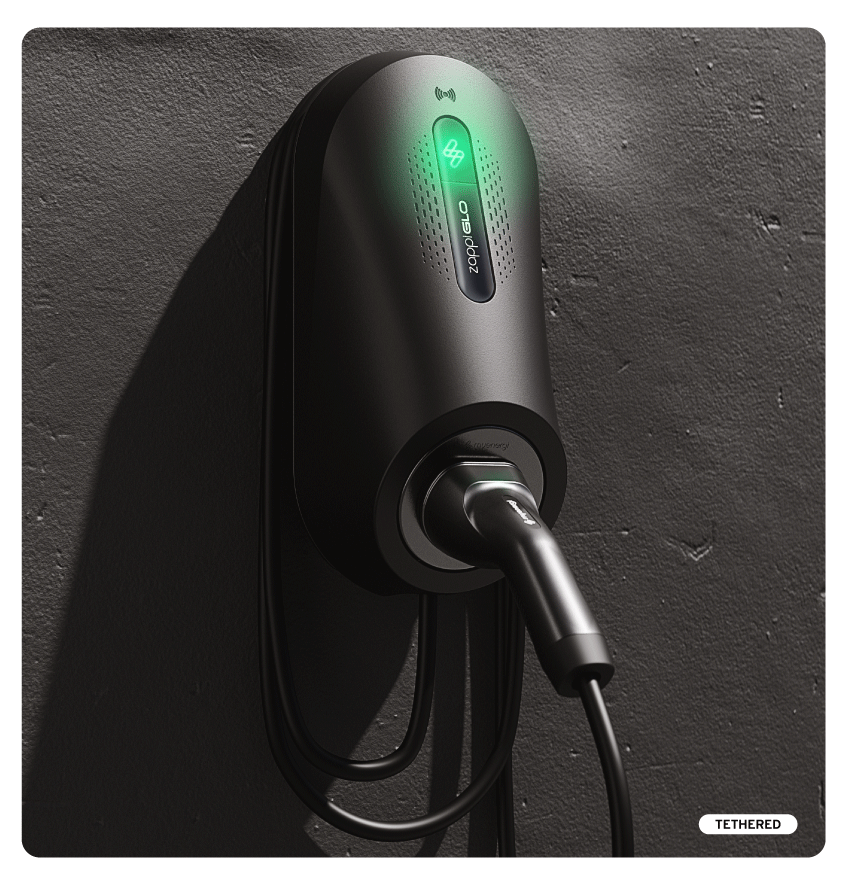

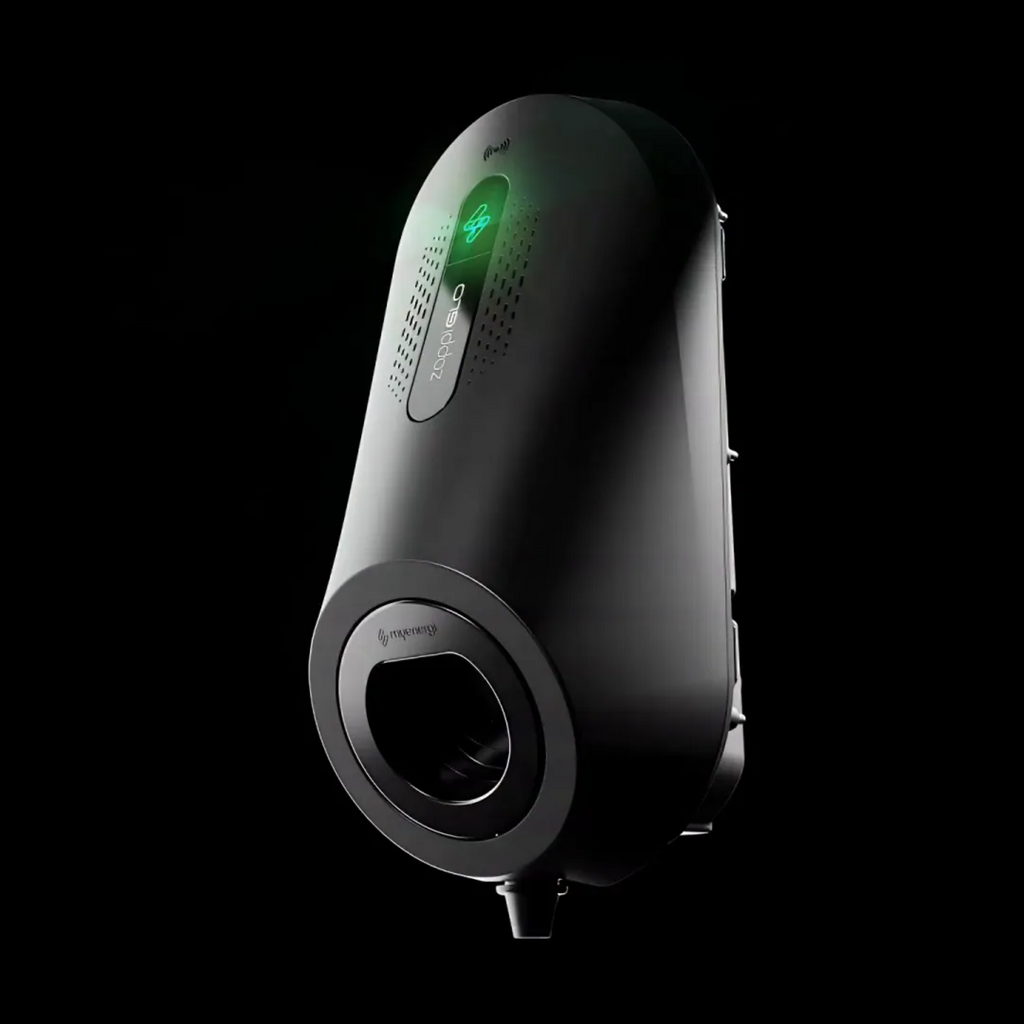

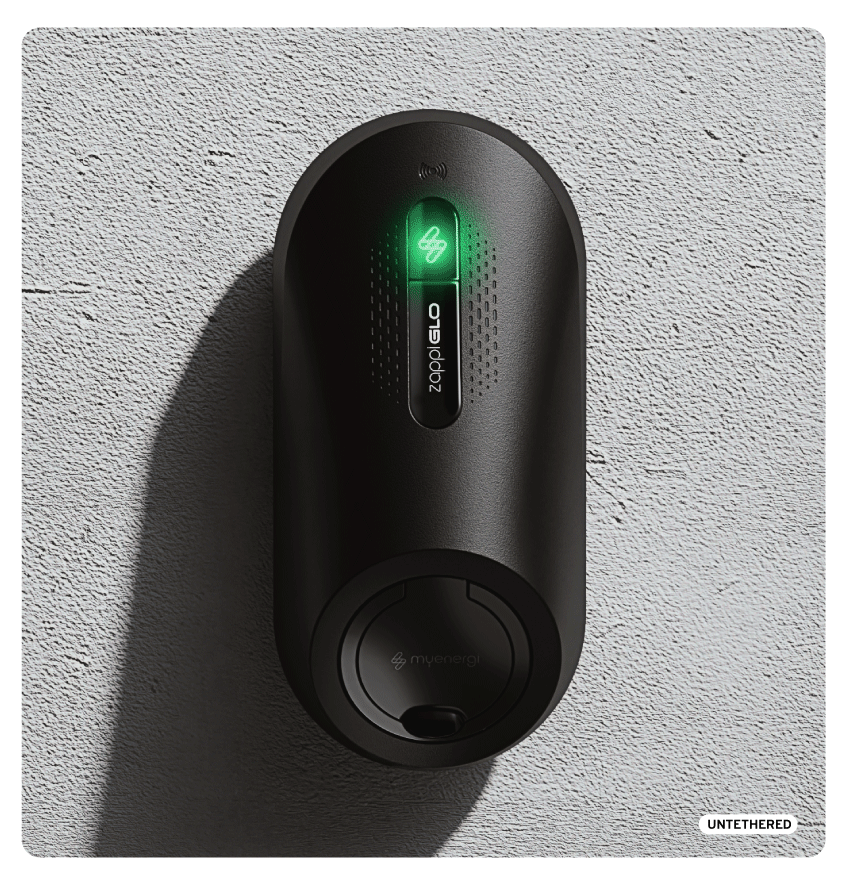

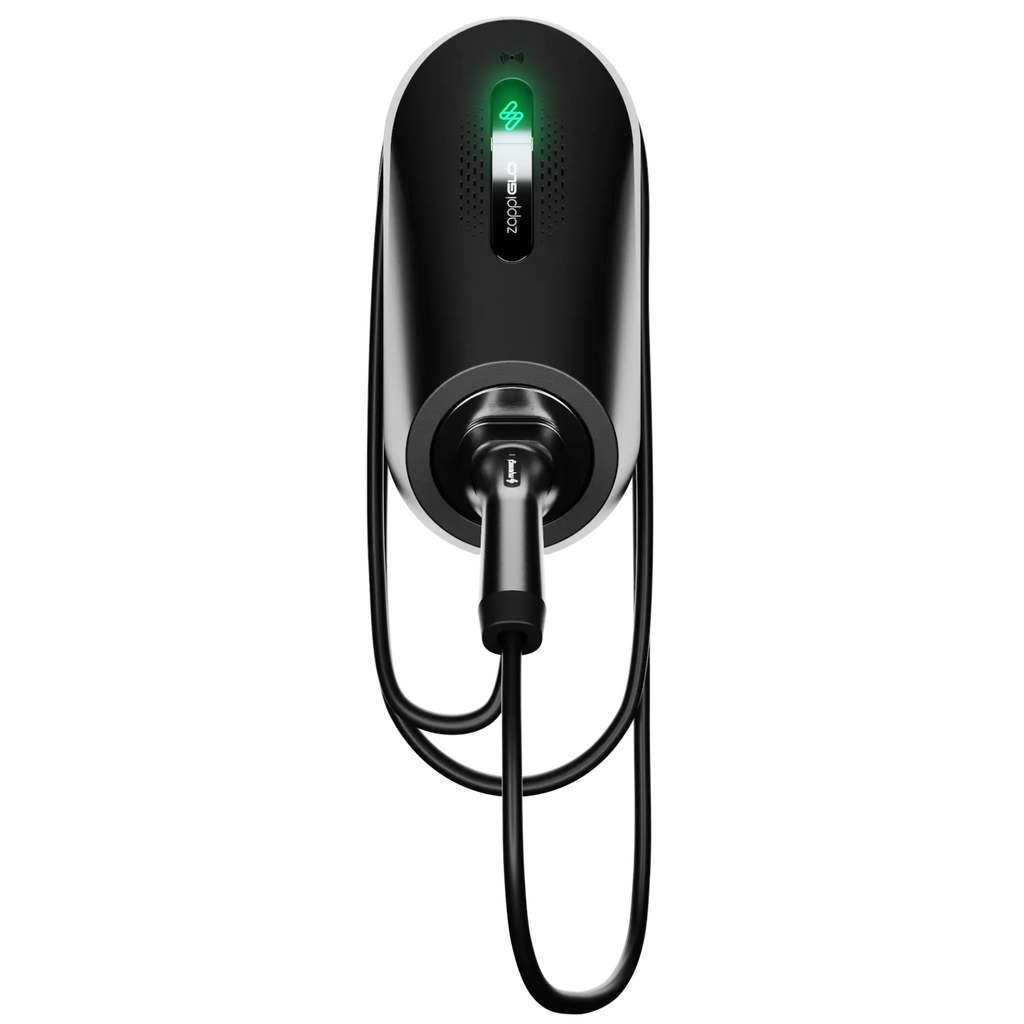

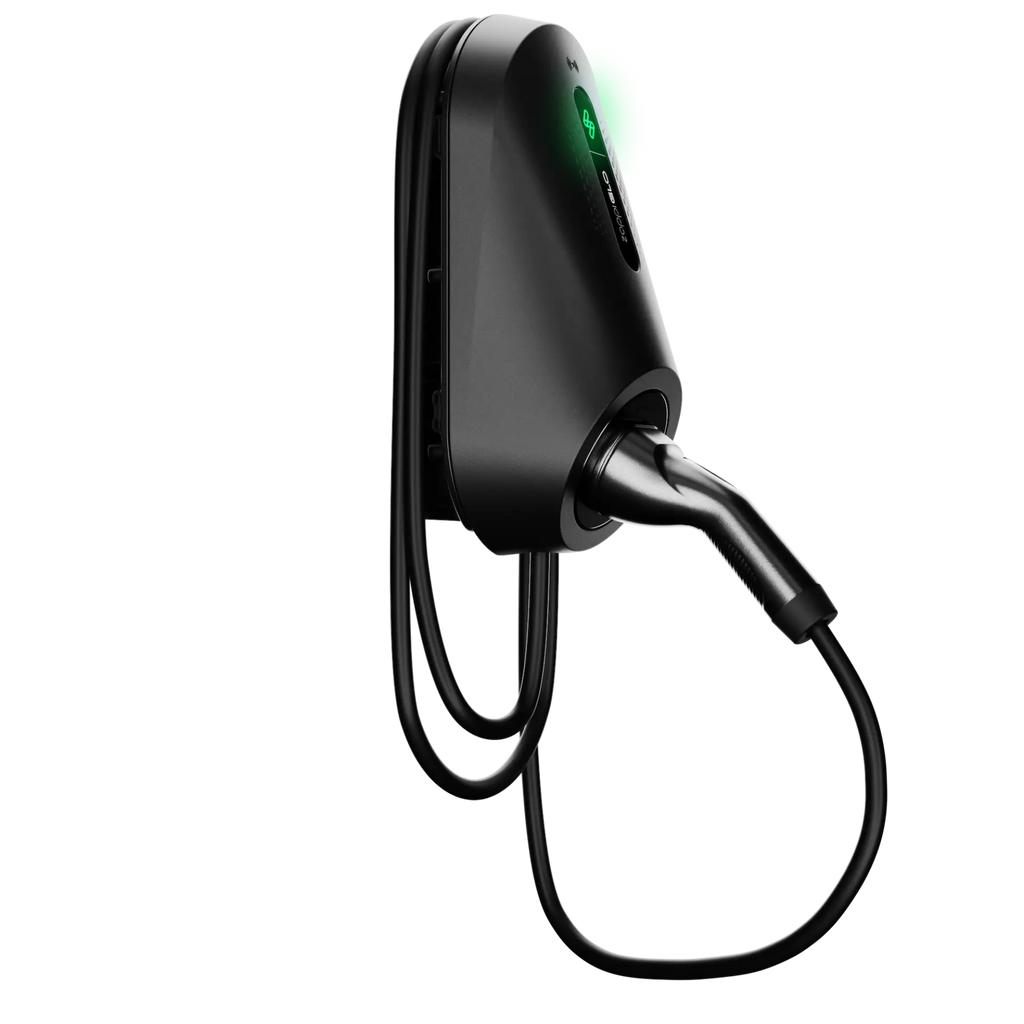

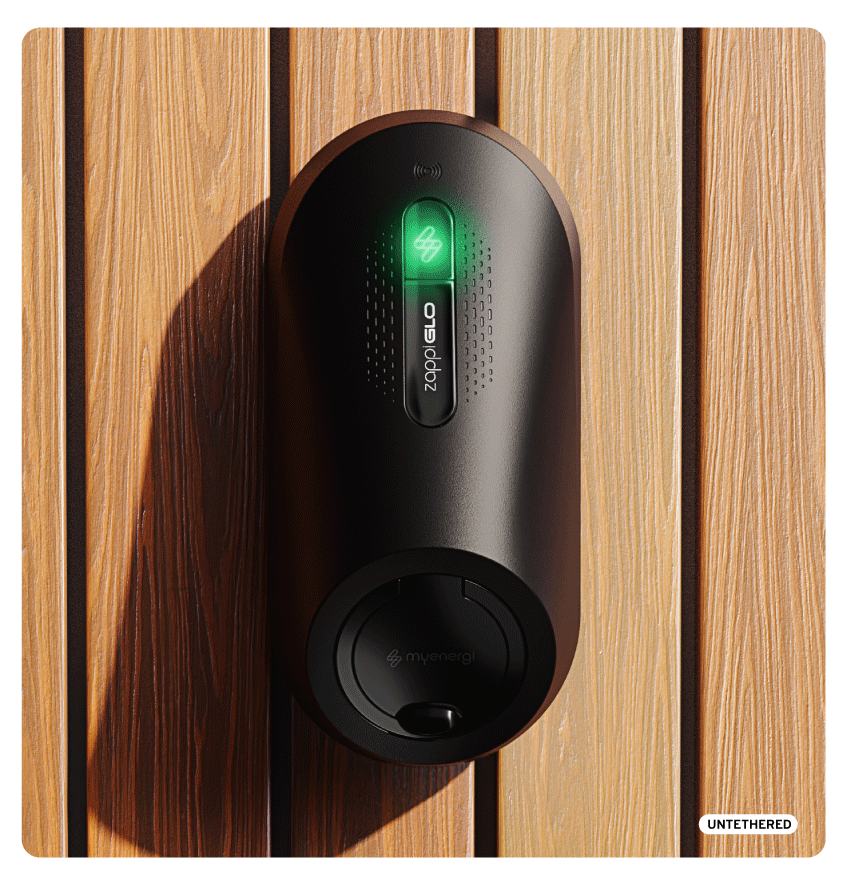

zappi GLO delivers up to 7kW of single-phase charging, available in both tethered or untethered options. The tethered version includes a 6.5m Type 2 cable, while the untethered model features a Type 2 socket so you can use your own charging cable.

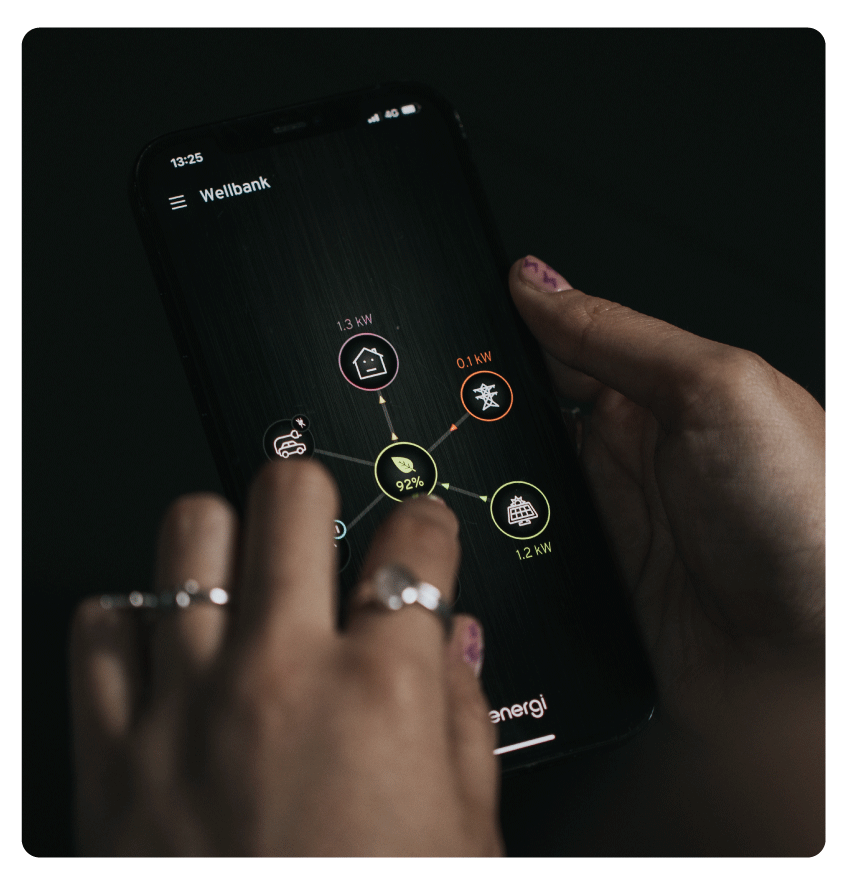

Its screen-free design keeps things simple, with everything managed through the myenergi app. From the app you can control charging sessions, manage settings and monitor performance. zappi GLO also includes RFID access and supports WiFi, Bluetooth and local ratio communication.
Easy to install. Even easier to manage.
zappi GLO is designed to simplify installation. Using the myenergi Installer Assistant app, installers are guided through a step-by-step setup process that helps ensure every installation is completed quickly and correctly.
The charger can be commissioned in minutes and handed over fully configured, including user profiles and grid settings. The result is faster installations, fewer return visits and less time spent on support, giving installers and property managers a dependable EV charging solution from the start.
Smarter energy, lower costs
Like all myenergi products, zappi GLO is built for energy-conscious operations. It integrates with solar panels, battery storage, and dynamic energy tariffs to help reduce grid usage and make the most of low-cost charging windows.
Businesses with solar on-site can charge vehicles directly from their self-generated energy, while tariff syncing ensures off-peak electricity is always prioritised. It’s a smarter, greener way to power up your operations and an easy way to show your commitment to sustainability.
| Specification | Details |
|---|---|
| Mounting Location | Indoor or outdoor (permanent mounting) |
| Charging Mode | Mode 3 (IEC 61851-1 compliant communication protocol) |
| Charging Current | 6A to 32A (variable) |
| Dynamic Load Balancing | Optional setting to limit current drawn from the unit supply or grid |
| Connector Type | Type 2 (EN 62196-1, EN 62196-2) tethered cable (6.5m) |
| Metering Accuracy | Load and external CTs designed in accordance with Class B (1%) of EN 50470 |
| Load Current Range | 0.25A to 5(32)A |
| External CT Current Range | 0.25A to 5(100)A |

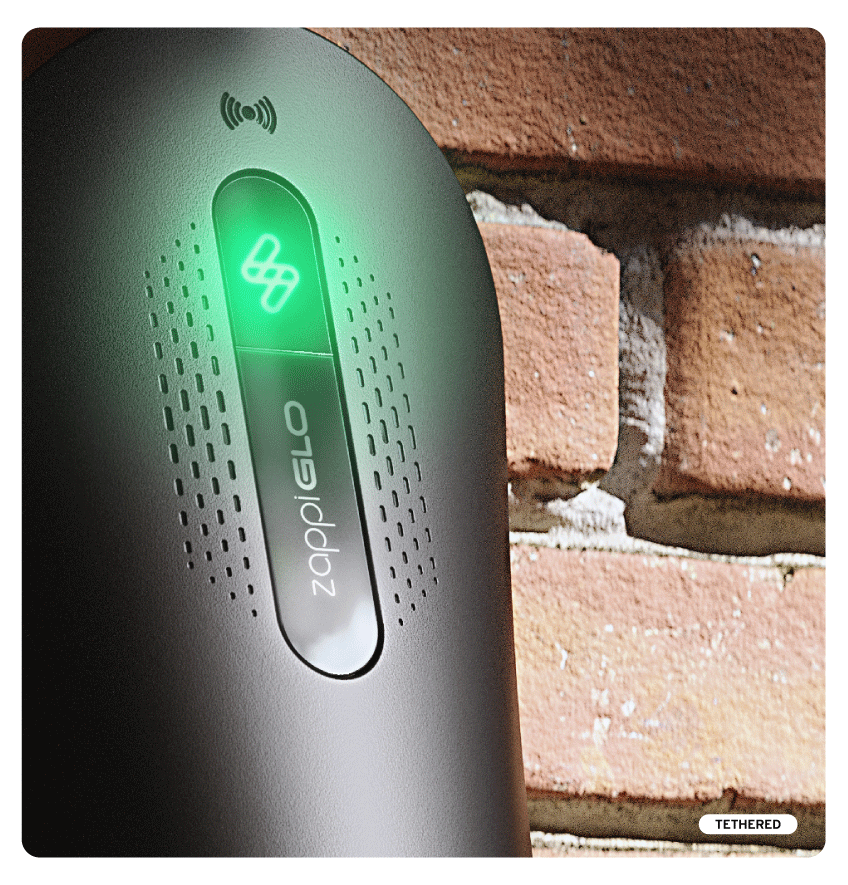

| LED Illumination | Multicolour LED, changing according to charging status |
| Rated Power | 7kW |
| Rated Supply Voltage | 230V AC |
| Supply Frequency | 50Hz |
| Rated Current | 32A max. |
| Standby Power Consumption | 3W |
| Integral Protection | 6mA DC residual current protection (RDC-DD), tripping characteristics in accordance with EN 62955 |
| Wireless Interface | 868MHz (proprietary radio protocol) |
| WiFi Connectivity | 2.4GHz 802.11b/g/n, up to 150Mbps |
| Bluetooth Connectivity | Bluetooth Low Energy (BLE) v4.2 |
| NFC/RFID | 13.56MHz ISO/IEC 14443 (MIFARE), includes 1 × MIFARE Classic 1K tag |
| Grid Current Sensor | 100A max. primary current, 16mm max. cable diameter, supports up to 2 external CTs |
| Cable Entry | Supports up to 2 × 35mm diameter entries |
| Supply Cable Size | Up to 8mm² (flexible), up to 10mm² (solid) |
| Supply Termination Type | Screw |

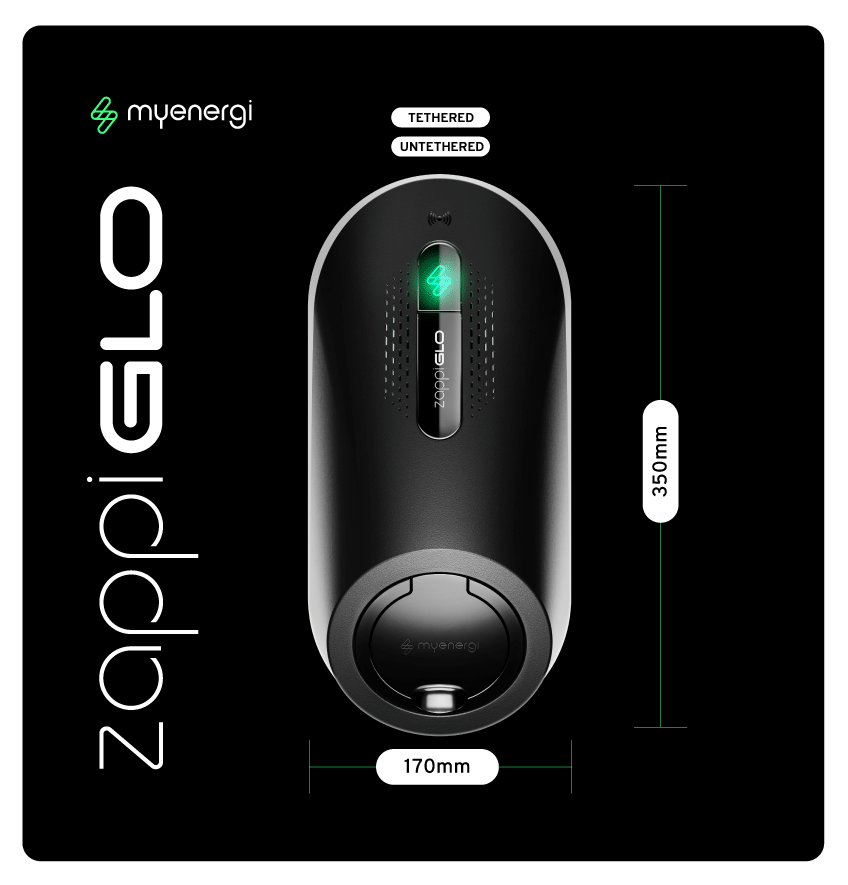

| Enclosure Dimensions | 350 × 170 × 160mm |
| Weight | 4kg |
| Protection Degree | IP65 |
| Enclosure Material | Polycarbonate |
| Operating Temperature | -25°C to +40°C (out of direct sunlight) |
| Impact Resistance | IK10 |
| Tamper Detection | Microswitch |
