Description

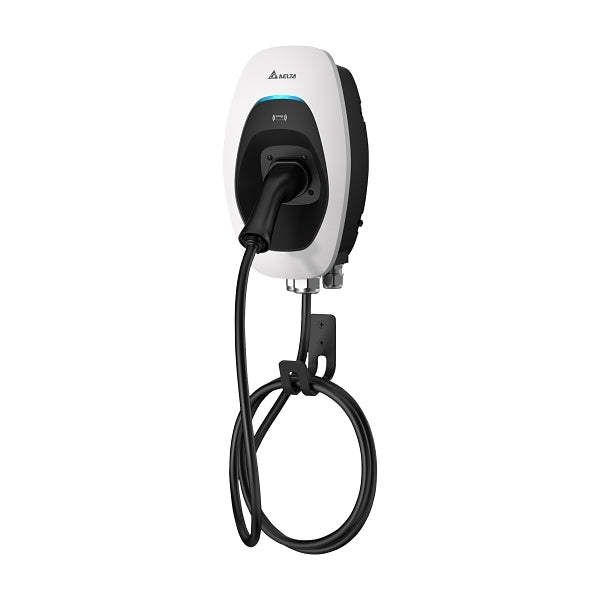

The Delta AC Max 22kW Charger is a market leader in function and appearance. Finished in a matt case and ideal for both indoor and outdoor, commercial or residential applications. Can be wired in single or three phase, mounted on a wall or as a floor standing option. Includes an in-built modem with Ethernet/Wi-Fi/SIM card slot connection, able to connect to all third party cloud-based platforms.
| Parameter | Value |
|---|---|
| Nominal connection power | 22 kW |
| Max. power per charging point | 22 kW |
| With load management | Yes |
| With communication interface | Yes |
| Function access control | Yes |
| Mounting method | Wall mounting |
| IP rating | IP55 |
| Number of vehicle connectors Type 1 | 0 |
| Number of vehicle connectors Type 1 CCS | 0 |
| Number of vehicle connectors Type 2 | 1 |
| Number of vehicle connectors Type 2 CCS | 0 |
| Number of vehicle connectors CHAdeMO | 0 |
| Emergency stop button | No |
| Number of charging units | 1 |
| With display | No |
| Impact strength | IK09 |
| Height | 371 mm |
| Depth | 167 mm |
| Width | 218 mm |
| Length of charging cable | 5 m |
