Description
EVC 2
BUILT SMART.
MADE YOURS.
INTELLIGENT
Charge faster and cheaper using phase balance and smart sensors.
CUSTOMISABLE
Select cable length or socket type, power output, colour options.
CONNECTED
Built in Wifi, Ethernet, Bluetooth, 4G LTE connectivity.
RELIABLE
Weatherproof, 36 month warranty, remote management system.
DESIGNED FOR HARSH ENVIRONMENT
Rain or shine our charger will work every time.
Made in EU with a rigorous quality control at every manufacturing step. 36-month standard warranty, extendable up to 60 months. IP 56 dust and water resistant. IK10 impact protection. Operating temperature ranges from -30 °C to +50 °C.
SMALL DETAILS THAT MATTER
Cable entry is possible both from the back of the device – for a more elegant, seamless look on the wall – or from the bottom, ensuring an even more secure and weather-resistant fit. This flexibility allows for easier installation in different environments while maintaining a clean appearance and strong protection against external factors such as moisture, dust, and impact.
CONNECTED TO YOUR NEEDS
Our app includes 25 language support. Smart scheduling to maximize your comfort. Detailed statistics to see how much you saved each month. Finetune your experience to how you like it. Set it and forget it. Let the charger work for you, not the other way around.
| Category | Specification |
|---|---|
| Dimensions | Width: 190 mm |
| Height: 401 mm | |
| Depth: 125 mm | |
| Output Options | Type 2 cable (5 m) |
| Type 2 cable (7.5 m) | |
| Type 2 socket | |
| Type 2 socket with protective shutter (T2S) | |

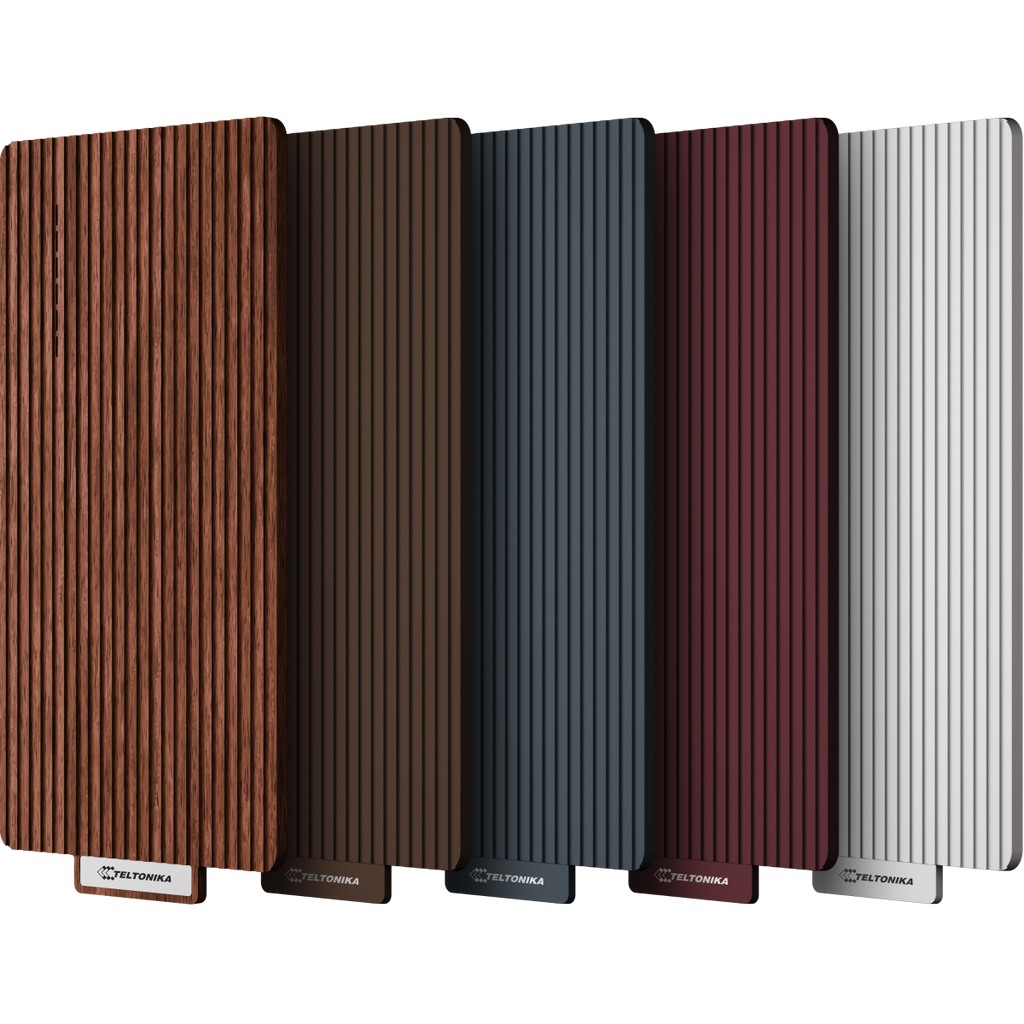

| Front Plate Options | Anthracite Grey |

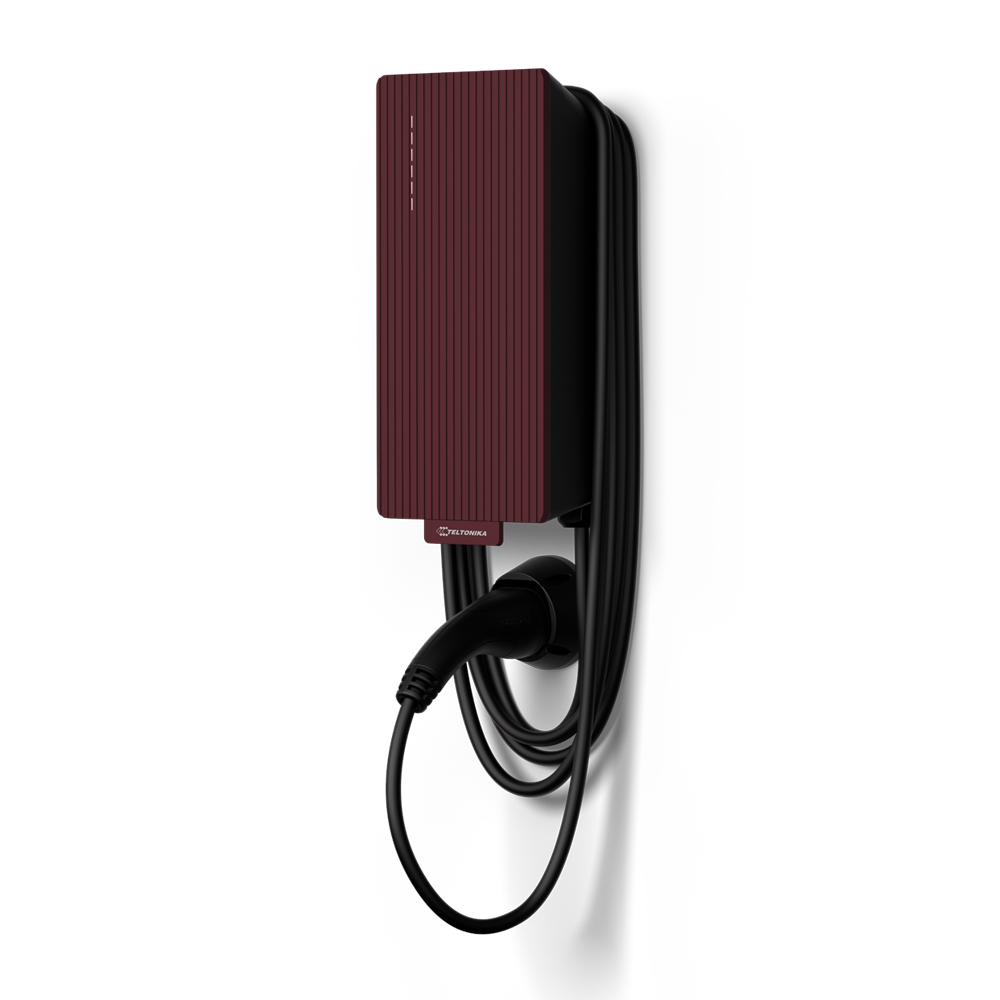

| Burgundy Red | |

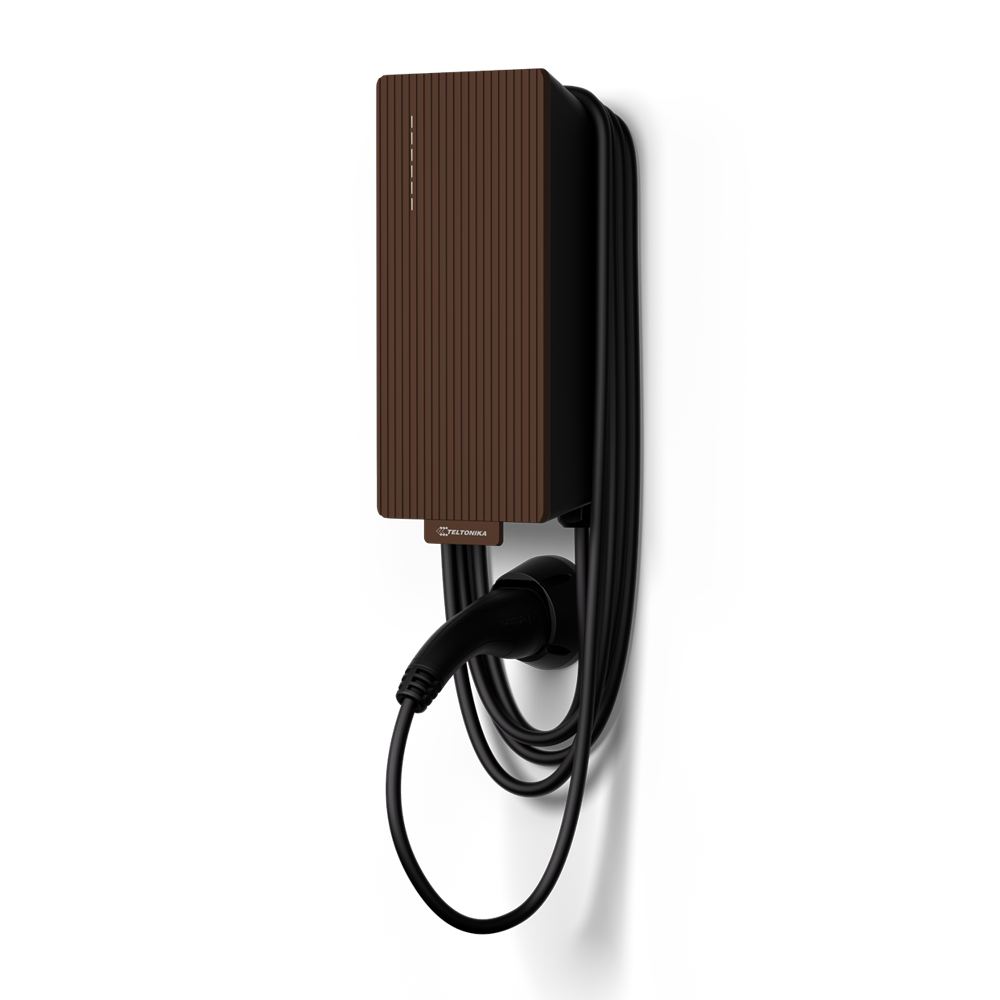

| Granite Brown | |

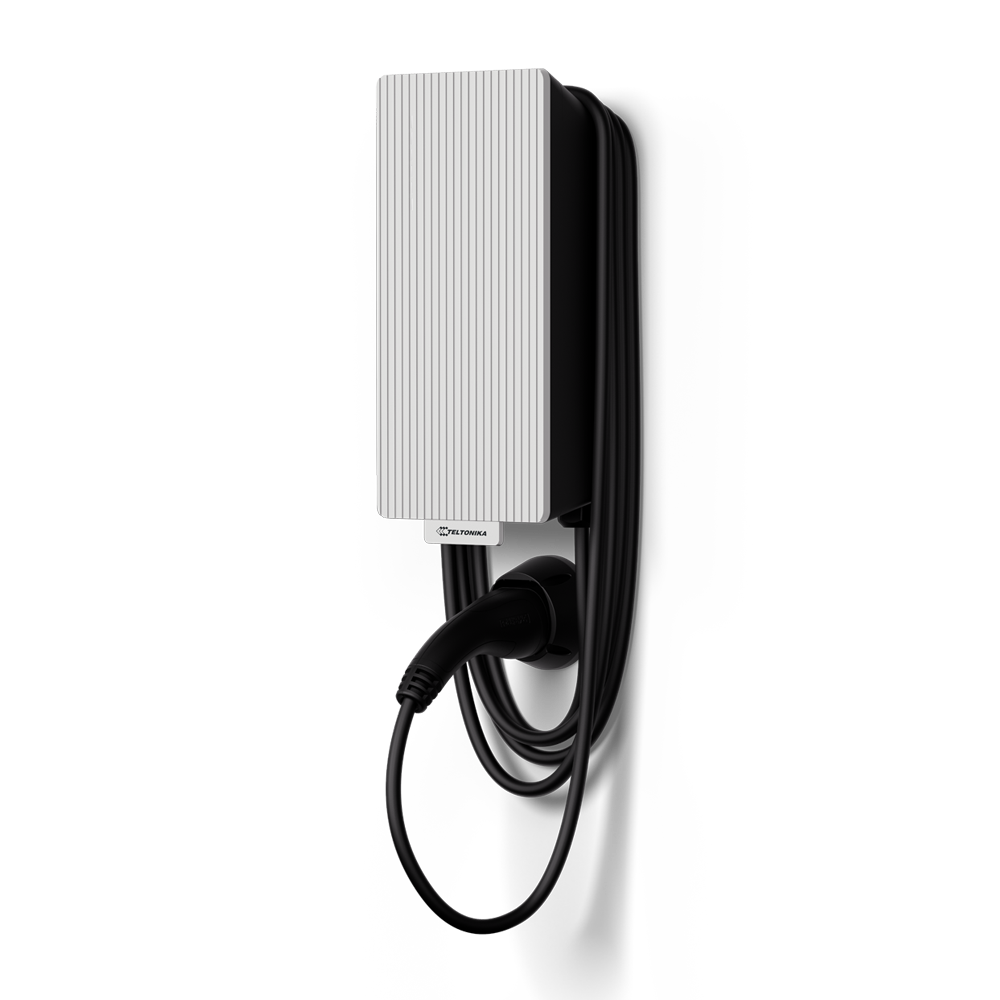

| Winter White | |
| Kebony® Wood | |
| Control Types | Android app – Bluetooth and local Wi-Fi |
| iOS app – Bluetooth | |
| OCPP 1.6 – Ethernet, Wi-Fi, 4G | |
| Power Options | 7.4 kW single phase |
| 11 kW three phase | |
| 22 kW three phase | |
| Certifications | CE, RCM and UKCA compliant |
| Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955 | |
| Environmental compliance: 2011/65/EU, REACH, RoHS, EUR1 | |
| Charger Connectivity | Wi-Fi 2.4 GHz b/g/n |
| Bluetooth Low Energy 5.0 | |
| NFC card reader (ISO 14443A) | |
| Ethernet (RJ45) | |
| 4G/LTE (CAT 1) | |
| Input Cabling | Cable entry diameter: up to 25 mm |
| Wiring cable cross section in connectors: up to 10 mm² | |
| Bottom cable entry option | |
| Rear cable entry option | |
| Protection | Input and output voltage and current monitoring |
| Overvoltage category: OVC III | |
| Protection against electric shock | |
| Residual current detection: 6 mA DC (IEC 62955) | |
| Ground fault detection | |
| Degree of dust and water protection: IP56 | |
| Impact resistance: IK10 | |
| Fire class: UL94 | |
| Rated Frequency | 50/60 Hz |
| Network/Grounding Types | TN and TT |
| Voltage | Single phase: 230 V (±10%) |
| Three phase: 400 V (±10%) | |
| Operating Specifications | Humidity: up to 95% RH non-condensing |
| Operating temperature: -30°C to +50°C | |
| Storage temperature: -40°C to +60°C | |
| Temperature Sensors | Integrated in all main components |
| LED Indicator Lights | Charging sequence and warning/error indication |
| Built-In Energy Metering | Accuracy deviation <1% |
| Load Balancing Features | Static load balancing |
| Dynamic load balancing | |
| Automatic phase balancing | |
| Multi-device |
